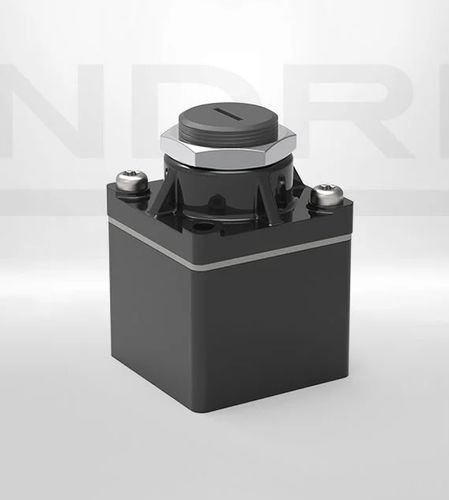

Inert gase pressure regulator Pure Flow 48.3

for oxygenstainless steelEPDM

Product overview
Pressure regulator for sensitive medical and analytical applications with high biocompatibility and oil-free production.

Design and function
Universally applicable flange-mounted pressure regulator for manifold installation. Provides precise regulation characteristics for low to medium flow rates. Compact rectangular design (30 x 30 mm) with housing, cover and adjustment screw in plastic for easy integration into existing devices.

Technical details (table)
Description | Value
Max. setting pressure | 0.2 - 5 bar
Type of pneumatic connection | Flange
Pressure range | 0.2 - 10 bar
Ventilation | Self-relieving function optional
Medium | Non-aggressive media, inert gases, oxygen (others on request)
Ambient temperature | 0 ... +60 °C
Materials | Wetted material: PA66, stainless steel; seal: EPDM; FKM (others on request)
Size | 30 x 30 x 46 mm

Applications

• Anaesthesia and ventilation equipment
• Dental devices
• Analytical instrumentation
• Dialysis systems
• Oxygen concentrators

Characteristics / specifications

• Max. setting pressure: 0.2 - 5 bar
• Pneumatic connection: Flange
• Pressure range: 0.2 - 10 bar
• Ventilation: Self-relieving function optional
• Suitable media: Non-aggressive media, inert gases, oxygen
• Ambient temperature: 0 ... +60 °C
• Wetted materials: PA66, stainless steel
• Seals: EPDM; FKM (others on request)
• Dimensions: 30 x 30 x 46 mm
