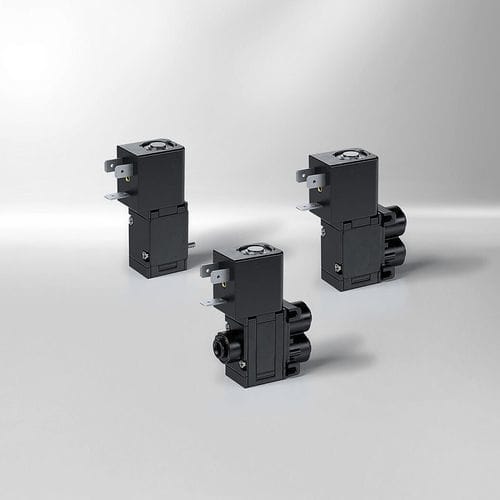

Direct-operated solenoid valve 97

3/2-wayNONC

Overview
Kendrion Fluid Isolation Valves are solenoid valves with media separation for liquids and gases. A diaphragm separates the valve drive from the process medium, making them suitable for aggressive media and applications where contamination must be avoided.

Advantages

• Compact design
• Media-separated valve construction
• Suitable for aggressive media such as acids, alkalis, and special inks
• High flow rate with low power consumption
• Large nominal orifice of approx. 3.5 mm
• Low-noise version available on request
• Optional manual operation and switch position indicator

Application Areas

• Handling of aggressive media
• Printing industry, especially special inks
• Chemical and process applications
• Fluid systems requiring contamination-free operation
• Applications with acids, alkalis, or sensitive process media

Key Technical Data

• Product type: fluid isolation solenoid valve
• Nominal voltage: 12 V DC or 24 V DC
• Power consumption: ≤ 6 W
• Pressure range: -0.9 to 3.5 bar, up to 8 bar on request
• Orifice size: approx. 3.5 mm
• Valve functions: 2/2-way and 3/2-way, NC / NO
• Protection rating: IP65
• Connections: flange or push-in connectors
• Dimensions: 68 × 22 × 30 mm
