High Throughput
The spirals convey loads up or down in a continuous flow, thereby facilitating high throughput. The standard load capacity is 75 pounds per linear foot of conveyor for speeds up to 200 feet per minute.
One Drive
The Ryson Spiral Conveyors need only one drive motor, even for units several stories tall. This equals to substantial savings in controls and systems integrations.
Small Footprint
The Ryson Spiral Conveyors have the smallest footprint available and therefore provide substantial space savings compared to conventional methods. Several standard sizes are available and the outside diameter varies depending on the size of loads to be handled.
|
|
|
|
|
|

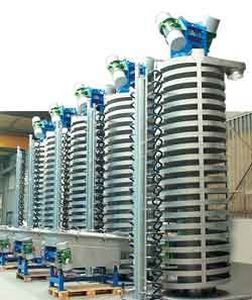

Spiral conveyors are manufactured and supplied by APOLLO VTS. Spiral conveyors are nowadays a proven and reliable solution for vertical transport requirements (if space is an issue) of packed products. Our spiral conveyors are of heavy duty construction and can be delivered in painted carbon steel, stainless steel or wash down versions, suitable for the food industry. Please feel free to contact us for application assistance.
Spiral conveyor benefits/features
The spiral conveyor's main features can be summarised as follows:
Small footprint
Proven and reliable vertical conveyor for packed products
One (1) drive
Low (100% roller) friction due to specific APOLLO chain slat arrangement
Built in safety protection
Overlapping slats
Easy to install
Low maintenance
Minimum noise level
Floorspace/small footprint
Spiral conveyors save valuable floor space. The spiral conveyor can convey loads up to 50 kg up and down in a continuous operation and can also be used as a space efficient buffer system. The spiral conveyor is of a rugged and modular design.
Roller friction/one drive
Only one (1) drive is required due to our special proprietary low friction chain slat arrangement. Low friction steel or stainless steel bearings in conjunction with the specific guiding system ensures very low friction and a smooth/quiet operation of the spiral conveyor.
For further information please check the technical information and applications page as well.
|
|
|
|
|
|
The SpiralVeyor® family of Spiral Elevators offers a complete range of elevators for all types of products and applications.
The SpiralVeyor® is a compact and high throughput solution for up or down elevation. It is known for its simplicity. No controls are needed. The SpiralVeyor® provides a continuous product flow and it is simple and reliable as a normal straight conveyor. The compact spiral-shaped track is the key to its unique compact construction that saves valuable floor space.
The application range is wide, from the handling of individual parcels or totes to handling of packed items such as shrink-wrapped bottle packs or cartons or the handling of single mass flow items such as bottles and cans. The Spiralveyor is applied in filling and packing lines, airports, post automation and warehousing.
SpiralVeyor® SV-PF (Print Finishing)
Accumulator/ buffer for specific cooling/ curing applications. Specially used in the print finishing industry.
Belt width: standard 400 mm
Capacity: up to 120 m/min, 300 items/min
The innovative space saving way of book cooling
Only one drive needed
Minimum transfers
The standard for the leading bookbinding machine manufacturers
The book line remains constant
Patented lateral roller system
Low maintenance design
AmbaFlex with decades of experience in graphical handling systems (especially Print Finishing) introduces the new generation of cooling towers for bookbinding lines. The revolutionary Cooling Tower (type SpiralVeyor®) is applied by the leading bookbinding machine manufacturers and recognized as the standard for industry.
|
|
|
|
|
|
The SpiralVeyor® family of Spiral Elevators offers a complete range of elevators for all types of products and applications.
The SpiralVeyor® is a compact and high throughput solution for up or down elevation. It is known for its simplicity. No controls are needed. The SpiralVeyor® provides a continuous product flow and it is simple and reliable as a normal straight conveyor. The compact spiral-shaped track is the key to its unique compact construction that saves valuable floor space.
The application range is wide, from the handling of individual parcels or totes to handling of packed items such as shrink-wrapped bottle packs or cartons or the handling of single mass flow items such as bottles and cans. The Spiralveyor is applied in filling and packing lines, airports, post automation and warehousing.
SpiralVeyor® TL
The Tote Lift is your economic solution for elevating plastic containers.
Belt width: not applicable
Capacity: up to 60 m/min
Economic solution for elevating totes
Up to 3.600 items per hour
Designed for repeating product sizes
Compact footprint
Continuous elevation
Made to fit the application
The Spiral Conveyor type TL combines a compact build with a continuous flow of goods, eliminating the disadvantages of both platform lifts and inclined belts. The SpiralVeyor® TL is suited for totes up to 450x650 mm, 35 kg.
Starting at Euro 9.500, the price range is far lower than alternative solutions, while providing much extra benefits.
|
|
|
|
|
|
The SpiralVeyor® family of Spiral Elevators offers a complete range of elevators for all types of products and applications.
The SpiralVeyor® is a compact and high throughput solution for up or down elevation. It is known for its simplicity. No controls are needed. The SpiralVeyor® provides a continuous product flow and it is simple and reliable as a normal straight conveyor. The compact spiral-shaped track is the key to its unique compact construction that saves valuable floor space.
The application range is wide, from the handling of individual parcels or totes to handling of packed items such as shrink-wrapped bottle packs or cartons or the handling of single mass flow items such as bottles and cans. The Spiralveyor is applied in filling and packing lines, airports, post automation and warehousing.
SpiralVeyor® SV
Space saving spiral elevator for packed products.
Continuous flow, high throughput, no controls.
Belt width: 200, 400, 600 mm
Capacity: up to 90 m/min, 200 items/min
Continuous elevator
Space-saving design
High throughput
Patented roller design
Tailor made
With its installed base of thousands of machines world wide (including demanding multinationals clients), the AmbaFlex Spiral Conveyor type SV sets the standard for industry.
|
|
In modern process-technical system, tasks such as cooling, drying, warming and refining are realized continuously with vibration machines with outstanding success.
With vibration fluidized bed coolers, worm conveyors or vibration conduits, the most varied of bulk materials can be processed economically with direct or indirect heat transfer.
|
|
SPIRAL
Technical Characteristics
- Non-streamlined apparatus (products are accessible)
- Continuous feed (no need for a spacer)
- Very simple mechanics (a single direct drive motor)
- Aprons interchangeable, without tools
- Flexible use
- Minimum floor take-up
Function
Enables the elevation or descent of unit or quantity-produced products
|
|

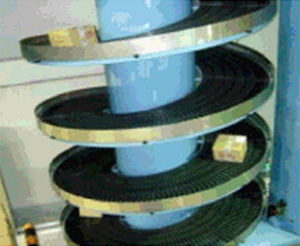

The spiral elevator allows transport of goods, up or down in manufacturing and packaging lines, or for the distribution between the line and the warehousing area. The spiral elevator offers efficient elevation without stop losses, a compact footprint and trouble free operation.
As the spiral elevator is working with a constant flow, the production flow can run without interruption and stop losses. The chain is of a patented design offering a smooth transport, low noise and a high mean time between failures (MTBF).
The spiral elevator is a standardized module offering a short delivery time, fast installation and ramp-up. The elevation is in the range of 1500–4000 mm with inlet height 800, 900 or 1000 mm.
|
|
|
|
|
|

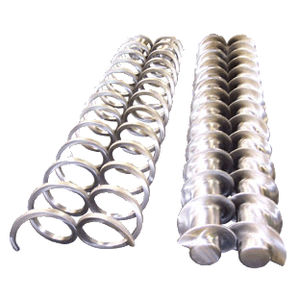

Steinless Steel Spirals

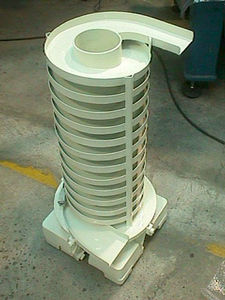

The result of many years of experience and of several applications with brittle products, the Cusinato spirals are well adapted to all those cases where the materials have to be handled as they drop and yet be kept rigorously undamaged.
Made entirely of stainless steel, they are available in various configurations, such as in the case when the product is dropped and fed for filling the storage silos or simply for the conveyance and drop of the product between two conveying systems (as for example, between two horizontal belt conveyors) on different levels. Because of their very wide use in the production and handling of pasta, the spirals have been continuously upgraded both in their design and in their performance so much so that they are being used successfully for handling and for storage into silos together with other brittle food products (for ex, snack, dried fruits, dried legumes, etc.).
The spiral chutes are built entirely at the Cusinato factory using special machines and equipment purposely designed for this function; so that, aside from the diameters of normal production, (the standard 500 mm and the more recent 800 mm), other models may be produced with various diameters, and spirals with different pitch and cross-sections so as to cover other requirements in terms of capacity and type of product to be handled.
|
|
Helical path for conveying bulk material vertically
Large contact surface on a small floor space permits the conveying action to be combined with process functions such as cooling, heating, drying and moistening
ADVANTAGES
. High conveying capacities
. High sanitary standard
. continuous operation - negligible maintenance
. Quick and easy to clean
. Efficient operation
|
|

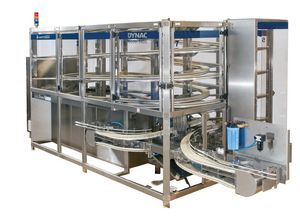

The DYNAC Conveyor System from Hartness International redefines the role of conveyors in high efficiency lines. It brings dramatic improvements to line throughput and product volume while providing first-in/first-out, pressureless product handling and accumulation. DYNAC has the unique ability to automatically expand its usable length as the line demands. Frequent slowdowns and micro-stops that are inherent, in even the best designed lines, can dramatically reduce throughput. DYNAC virtually eliminates the effect of these occurrences, raising
productivity by providing a constant and optimal product flow to line components.
|
|

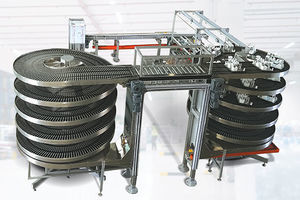

The accumulation buffer combines two spirals for up and down movement, thereby effectively utilizing overhead space for accumulation storage while preserving valuable floor space. Most conveyable products can be handled, including bottles, cans, pails, bags, bundles, totes, containers and wrapped or unwrapped items.
The Ryson Accumulation Buffer can be used to provide buffering where products need time for cooling, drying or curing. Additional dynamic buffer storage capacity can be obtained by adding pairs of spirals.
|
|
|
|
|
|
AccuVeyor® AVX
Dynamic Accumulator
Save valuable space!
- Dynamic accumulation
- Improves line throughput
- Tremendous accumulation space
- Compact design
- Zero pressure
- First in/ First out
Dynamic Accumulation represents a welcome improvement to filling line throughput. The AccuVeyor®'s accumulation length can increase to overcome micro-stops and slow-downs in up or down stream equipment demands. Unlike conventional solutions, the AccuVeyor® family offers a compact solution in combination with a low cost of ownership. Dynamic Accumulation is now economically viable for almost all packing and filling lines. The AccuVeyor® is your true alternative for single-lane accumulation.
Technical specifications
The AccuVeyor® AVY is one of the single-lane accumulators in the AccuVeyor® family of accumulators. Its principle is based on a serie of parallel belts following the spiral track. To increase accumulation capacity, the in-feed divert sequentially selects a different lane to fill. The discharge merge selects a lane to be emptied in a first-in first-out sequence.
Configurations
Build to suit your accumulation needs, products and space.
The AccuVeyor® comes in full wash down stainless or economical painted material configuration.
There is a single and a double/ multi spiral configuration available.
There is an inline and cross divert/ merge available.
|
|
Spiral conveyors represent a proven reliable solution for vertical conveying of all types of packed products, where differential heights are to be covered. Spiral conveyors are the ideal solution for continuous vertical transport, where floor space is an issue. The spiral can convey loads up to 50 kg up and/or down in a single or multiple lane execution. The Apollo Spiral Conveyors unique features:
* flexibility of complete system
* one (1) drive
* specific chain slat arrangement
* low noise level
|
|
- Universal use for small parts and connecting elements of all types
- Readiness and Conveying - Sorting and Buffering
- Escapement and Merging
- Monitoring and Controlling
|
|
| ... products without technical information |
| |
|
|
