Three Pass Firebox Packaged Boilers
Efficient 3-pass design, fuel flexibility for gas, oil, heavy oil, and combination gas/oil, ASME code constructed & stamped for 15 psi steam/30 water registered with the National Board of Boiler Inspectors, competitively priced, easily maintained, designed for efficiency, large furnace volume for ultimate combustion efficiency unified refractory base floor, steel skids and lifting eyes, low heat release.
Series 45
13.4-834 HP, 15 psi steam, 30-100 psi hot water
Three Pass Firebox Design. Thickest boiler steel in the industry. Efficient and flexible - gas, oil, heavy oil, and combination gas/oil. Available with LOW NOx configuration.
Series 100
13.4-834 HP, 15 psi steam, 30-100 psi hot water
hree Pass Firebox Design. Thickest boiler steel in the industry. Efficient and flexible - gas, oil, heavy oil, and combination gas/oil. Available with LOW NOx configuration.
|
|
|
|
|
|
STEAM-MATIC SM boilers have been developed upon BONO ENERGIA’s significant technical and technological expertise in manufacturing complex, high-capacity thermal equipment.
With over 10.000 installations worldwide, these boilers represent a remarkable achievement and a valid response to the needs of the industrial market which are combined with reliability and high performance.
STEAM-MATIC SM boilers are reliable: severe quality controls during all productive cycle, hydraulic and fire workshop tests before shipment, easy installation and maintenance represent, together with the proved quality of BONO ENERGIA SPA boilers design, the best guarantee for a very long service life.
STEAM-MATIC SM boilers offer superior performance: the innovative design of the pressure vessel ensures excellent heat transfer in two passes. The large volume of water and a wide steam chamber provide high working flexibility and a considerable steam reserve.
STEAM MATIC SM boilers are low consumption boilers, Bono technology ensures a thermal efficiency of 89% reducing consumption of fuel is to the minumim. Additional devices as Flue gas/air or Flue gas/water economisers or Integrated control system Optispark allow to reach 95%!
STEAM MATIC SM boilers can satisfy steam needs from 1 to 5 t/h.
|
|
|
|
|
|
Type: SYK 25-SYK 350
Capacity: 25m2-350m2
3-Pass skotch type
Boiler efficiency: 89%
Burning efficiency: 91-92%
Delivered with followings
Steam boiler and accessories
Boiler feding water pumps and accessories
Burner and accessories
Condensing tank and accessories
Degasifier tank and accessories
Degasifier feeding water pumps and accessories
Chimney
Electric panel and installation
( depends on request) Steam collector, Water softner and Sand filter
Our Steam Boilers are manufactured with modern and technological techniques and conforme TSE, EN, DIN, ASME, ADMARKBLATTER standards.
Boilers materials that are used in our boiler industry are being controlled according to quality standards and all specifications, techniques are documented according to ISO 9000-2001 standardization. All of our technicians and engineers are professional in their own businesses. In order to be a leading company in this field, we believe that is essential to produce reliable, rational and qualified solution with intensive customer satisfaction. That is the reason why we use the highest class materials and equipments to produce the perfect steam boiler.
PLEASE WRITE ALL ENQUIRIES IN ENGLISH ONLY
|
|
|
|
|
|
STEAM-MATIC SG boilers have been developed upon BONO ENERGIA’s significant technical and technological expertise in manufacturing complex, high-capacity thermal equipment.
With over 5.000 installations worldwide, these boilers represent a remarkable achievement and a valid response to the needs of the industrial market which are combined with reliability and high performance.
STEAM-MATIC SG boilers are innovative: they offer the combination of the significant advantages of an entirely water-cooled flue-gas reversing chamber with a simple, efficient arrangement of the tubes on the plates.
STEAM-MATIC SG boilers offer superior performance: the innovative design of the pressure vessel ensures excellent heat transfer in two passes and provide full accessibility to the boiler and the flue gas reversing chamber. The large volume of water and a wide steam chamber provide high working flexibility and a considerable steam reserve.
STEAM MATIC SG boilers are low consumption boilers, Bono technology ensures a thermal efficiency of 89% reducing consumption of fuel is to the minumim. Additional devices as Flue gas/air or Flue gas/water economisers or Integrated control system Optispark allow to reach 95%!
STEAM MATIC SG boilers can satisfy steam needs from 6 to 25 t/h.
|
|
Type U-ND/U-HD as flame tube boiler with
2-pass technology up to an output of
175-3,200 kg/h (low pressure) and
175-1,250 kg/h (high pressure) for steam
generation
U-MB type series as a flame and smoke tube
boiler with 3-pass technology and steam generation
output of 200-2,000 kg/h
Type UL-S as single flame tube/smoke tube
boiler with 3-pass technology up to an output
of 1,250-28,000 kg/h for steam generation
Type ZFR as double flame tube/smoke tube
boiler with 3-pass technology up to an output
of 18,000-55,000 kg/h for steam generation
|
|
APPLICATIONS
LISTINGS
Laboratory use, steam for tanks, storage
tanks, reactions and distillations,
autoclaves, dyestuffs, food products,
jacketed vessels for processing waxes,
paraffins, glues, resins, and varnishes.
Built in accordance with Code S of ASME
Boiler and Pressure Vessel Code and is UL
Listed.
|
|
|
|
|
|
CT water tube type steam generators are the result of over 40 years experience of BONO ENERGIA in the industrial, petrochemical and power generation applications.
Engineered using the most advanced CAD systems, these generators guarantee the highest operating features, thanks to BONO's experience in heat transfer, welding technology and pressure vessel calculations. The production, carried out in Peschiera Borromeo facilities, is based on ISO 9001-2000 quality standards, with inspection plans for material, production process and final test.
CT series water tube steam generators represent a modern concept of "D" shaped desing, having two overmounted drums, expanded vertical tubes and full water walls type furnace. The water circulation inside the boiler is of the natural type.
The burner is housed inside the front water wall by means of properly shaped water tubes.
CONVENTIONAL FIRED WATER TUBES BOILERS (1,000 units world-wide installed)
Model
Clajtub CTD-S / Clajtub CTD
Configuration
Package / Site erected
Medium
Saturated and Superheated steam
Steam production
8 to 150 t/h
Design pressure
up to 80 bar
Steam temperature
300°C - 480°C
Thermal efficiency
up to 94%
Type of fuel
Natural Gas, Fuel Oil, Refinery gas, Lean gas, Reach gas, Coke Oven Gas, Process gas
|
|
|
Garioni Naval offers biomass fire tube steam boilers which are developed based on our cooperation with global engineering and European know-how combining with over 45 years experience and technical knowledge of solid combustibles, especially coal. Biomass steam boilers range from a capacity of 2 ton/h to 10 ton/h with steam pressure from 1 bar to 15 bar. Garioni Naval Biomass steam boiler is a two passes fire tube boiler with external prefurnace combustion chamber. The boiler is compactly designed with excellent appearance.
|
|
Many technological processes, above all in the food industry, need to use high temperatures (higher than 250°C).
High temperatures are usually obtained using thermal oil but, new regulations, do not allow to use thermal oil where there is danger to pollute the food under process.
In these cases it is a must to use high pressure steam up to 110 bar, for having temperatures up to 318°C.
We have studied and produce our steam generators GMT/HP that, working with closed circuit and with natural circulation (no pump is needed) can produce steam up to 110 bar.
All installations using GMT/HP work without pump, steam traps, water treatment and feed water tanks.
A simple installation using our engineering experience.
|
|
Saturated Dry Steam; Immediately
Computer Aided Design in compliance with latest CE pressure equipment directives and EN Harmonized Standards.
Accredited Organisation F module Certificate (CE Mark)
Easy operation and maintenance
Small size, high performance
Safe operation
Compact solution for steam
Main components of steampack steam system package
HDR high pressure steam boiler developed with Swiss technology
Liquid or gas fired burner application
Feed water pump module with stand by pump and armatures
Boiler armatures including all operation and safety equipment
Electric control panel mounted on the system
Electrode - controlled water level safety system
Chimney (optional)
|
|
Euroboiler Garioni Naval heaters are produced to be able to burn every type of solid fuel, using two different type of burning equipements:
1) Prefurnace with looding and unlooding screw system.
2) Rolling grates
Grates are manufactured with the best resistant cast iron alloy in order to guarantee a maximum lifetime great performance. Grates are designed to burn different types of combustible such as coal from 0 to 50 mm with a calorific value from 4.000 to 7.000 Kcal/Kg, wood waste / chip and other kind of solid fuels.
Our systems are delivered complete wit exhaust gas treating systems Tailor designed on the fuell type and customer needs.
|
|

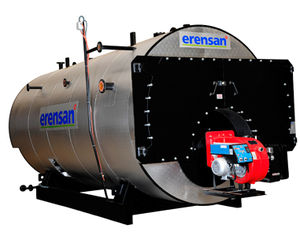

High Pressure Steam Boilers coded HPS are three pass and with firetube design .Erensan boilers are designed with Computer Aided Design in compliance with latest En Norms and Pressure Equipment Directives of Europe.
Main Characteristics :
Large Water and Steam Volume helpd to supply Steam in peak drafts and fluctuating steam drafts. Large heating Surface helps higher heat absorbtion and Dry Steam supply. With the Wet Back design maximum benefit is taken from heating surface.Lower counter pressure of the boiler reduces power consumption of the burner and easier combustion.Minimized refractory enables low thermal inertia and reduced service cost and better heat transfer.With the optimum Chamber sizes and well distributed thermal loading more effective use of Radiation heat transfer surfaces.High efficiency of 95% is acquired .
Wide capacity range from 1t/h to 25 t/h enables all industries to benefit .
Optianal : Air , Water Economizers, and Superheaters are applicable upon request.
|
|

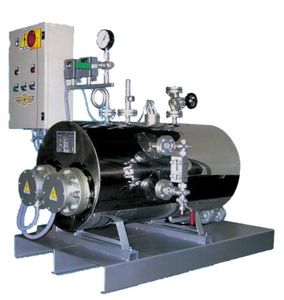

GVE INOX produce
CLEAN STEAM, without impurities and oxides. These steam
boilers are requested to supply steam to the alimentary,
cannery, wine processing, chemical, petrolchemical,
pharmaceutical industries. The pressure is adjustable from 0.5
to 12 bar in order to have different for steam temperatures.
As the steam boiler type GVR inox, the external covering and
the water tank are made in stainless steel. The water tank
and the pump can be located under the boiler in order to
save space, up to GVE 72 type (H1). Each steam boiler is
equipped with all control, safety devices and on request of
four wheels for an easy deplacement of the machine. It will
be enough to connect the
main connections and
after few minutes the
boiler will produce steam.
|
|
Byworth manufacture fire tube steam boilers in two ranges. The Yorkshireman and Yorkshireman2 ranges are highly fuel efficient three pass wetback steam boilers, available in outputs between 1000 and 18000 kgs per hour and working pressures from 100 to 300 psig (7 to 20 barg). The Yorkshireman2 achieves exceptional efficiency levels by the inclusion of unique XiD fire tubes. These increase the heat transfer from the tube passes by over 80% which in turn leads to overall efficiency of the boiler of around 93%. This is without the incorporation of a flue gas economiser. The Yorkshireman range is highly suited to arduous workloads and is extremely robust.
The MX range of fire tube boilers covers 250 to 5000 kgs per hour and is suitable for lighter workloads.
|
|
The YHB boiler is designed for specialist high pressure hot water applications. Built to BS2790, this range is preferred by engineers and consultants worldwide for outputs from 650 to 10500 kW with working pressures up to 20 bar g.
|
|
|
The magnabosco Boilers Dept. is part of the Magnabosco Group which manufactures milk processing and tyres retreading plants, plants for the pharmaceutical and chemical industries, for the composite materials processing, for pasterization and machines for washing of different type of containers.
|
|
|
|
|
|
BABCOCK WANSON fire tube boilers - shell boilers are characterised by the optimisation of the Boiler / burner combination which precisely matches these two main components ensuring that performance and environmental standards are met. BABCOCK WANSON is also synonymous with tailored single source service action.
User advantages :
- reliability and robustness ;
- constant efficiency even higher than 97% in the range from 30 to 100% of the load ;
- effective Boiler / Burner combination and CE marking of the assembly ;
- heat exchange by radiation and convection optimised ;
- compliance with environmental standards : exhaust gas (NOx, CO...), efficiency... ;
- suitable for wide output variations ;
- steam of high quality (dryness higher than 99,5%), due to the integrated steam separator ;
- availability higher than 97% ;
- fully packaged factory assembled and tested ;
- broad range of outputs available ;
- maintenance contract with 6 years guarantee on the burner and the boiler body ;
- innovating monitoring, suitable for integration in industrial systems of control and for connection to the network of BABCOCK WANSON telediagnosis.
|
|
|
|
|
|
The three-pass wetback Yorkshireman range is ideally suited to heavy workloads. Add to this the latest combustion technology and control equipment and you'll achieve impressively low running costs and emissions.
Each boiler is individually tailored to your specific needs and manufactured from start to finish in our own factory. All fittings are mounted in the factory to make installation on site quick and easy.
The boiler can incorporate any make of burner to suit a wide range of gaseous or liquid fuels in single, dual or tri-fuel combinations.
Thermal efficiency (based on NCV) in excess of 90% (94% with the optional economiser unit).
External surfaces are heavily insulated and finished in tough, Aluzinc cladding.
Smoke boxes employ the latest ceramic fibre technology offering significantly less heat loss than traditional refractory.
The Yorkshireman range has larger heating surfaces and steam space than comparable boilers, meaning desirable low heat transfer rates, Low NOX emissions, easily achievable outputs, and quality dry steam throughout the firing range.
A wide range of accessories are available to further enhance the boiler; contact us for more details.
Outputs to 10MW (15,900 kg/hr) and operating pressures to 20 bar(g) available.
|
|
Where to use : With all steam sterilizable sampling valves.
How to use: Manually-Instructions available
Use for: Sterilizing with steam.
Accessories:
Ignition: Piezoelectric (included)
Connection hose: PTFE (included)
Burner: Labogaz (included)
Material:
Steel Parts: AISI 316L(1.4404)
O-rings: EPDM
Foot: EPDM
Key measurements
394 mm * 194 mm.
Capacity: 0-250 ml. 0 - 8.5 oz.
Net weight: 1.8 kg./pc. 3.97 lb
Temp. range: 10 C - 1000 C. 34ºF - 212ºF
Pressure and temperature can be increased by using the a Pressure relief valve (850059).
Please note! It is prohibited to air mail or air freight the gas cans, it is a standard product available throughout the world.
|
|
|
Magnabosco company has also designed the steam boilers type GVR in stainless steel for the production of clean steam.
|
|
VAPOPREX HVP
Medium pressure steam generator (12...15Bar)
The VAPOPREX HVP 12 and 15 bar saturated steam generators have been designed according to the EUROPEAN PED directive.
|
|
|

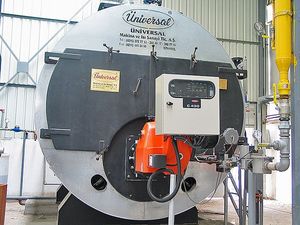

UNIVERSAL Scotch type, 3-pass, fire smoke tube steam boiler has large and corrugated combustion chamber.Small dimensions and packaged construction enable minimum installation area. High boiler efficiency. (η=%88~90) Packaged type boilers have several features for safety.
|
|
Model COMPACT P
PRESSURIZED WATER TUBE BOILER
High-yield pressurized generator equipped with multi-level or modulating burners for traditional fuels.
General Features
Panelled sub-vertical water tube generator which can be moved as a single unit.
Upper cylinder having a big diameter to ensure fluid expansion and steam cushion and lower cylinder connecting to the tube bundles.
Built in compliance with P.E.D. directive and EC marking with design pressures varying from 5 to 20 bar for series production to generate superheated water and/or steam.
Gases flow along horizontal passes, countercurrent to return water
High power burner for liquid or gas fuels.
Robust roll-formed free-expansion metal frame.
Outer coating in fretted, galvanized sheet metal, painted using epoxy enamel, for a long-lasting result.
|
|
ALSTOM has extensive knowledge of steam generation, combustion, fuel technology and heat recovery systems
Our wide range of equipment includes:
-utility boilers including drum-type, advanced once-through (sub or supercritical) and fluid bed, with a complete range of firing systems
-heat recovery steam generators (HRSG) for large gas turbines (>50MW) in combined cycle or cogeneration applications
-boiler products, including air preheaters, mills and pulverizers
We cover all types of fuels oil and gas, bituminous coal, anthracite, lignite, petcoke, oil refinery waste, industrial by-products and biomass.
Products and supply tailored to meet our customers needs
|
|
Model COMPACT
This series is composed of 2 different models: The first is a low-grade fuel generator for the energy reconversion of processing scrap which can be installed in two different ways:
using the traditional method with fore-oven set into the ground with manual loading and fuel insuflation systems and the possibility of pilot or primari burner. This solution is suitable for primary processing industies in Afdrican or Asian countries.
The second method involves the positioning of the generator over a base which acts as a container for the internal oven, where the automatic grille of the fuel loading and ash removal systems is housed.
|
|
|
|
|
|
Type: Model 200-Model 8000
Capacity: 200kg / h-8000kg / h
4 bar-20 bar
Work with gas, light oil, heavy oil
Boiler efficiency: 90%
Burning efficiency: 91-92%
3 pass special design
Delivered with followings
Electric panel
Economizer
Burner
Feedig pumps
Condensing tank
Water softner
ADVANTAGES OF BROX STEAM GENERATORS:
Brox steam generators can achieve steam in 5 minutes in the desired level. It does not need to be run before usage.
The steam is produced in the antigorite. Like classic boilers, it does not have the high pressure blow up risk.
It does not have any water level instruments. Because the system is controlled automatically, nobody needs to be present.
It is produced vertically and horizantal depending on your request.
It is designed to give steam in the shortest time, to save time and energy, and to provide maximum safety for the industries in need.
With the design and fast firing capability, it will reduce the consumption to minumum. When compared with classic boiler, it saves 10% more.
It is designed to fire naturalgas, diesel fuel and fuel oil. It can use all three with the same firing unit.
To get quality system, enough water is given to the chamber with the same ratio of fuel that is needed for firing. In big units, the fuel and water ratio is designed in modulations.
PLEASE WRITE ALL ENQUIRIES IN ENGLISH ONLY
|
|
|
|
|
|
The MX range is a compact and affordable steam boiler ideal for small to medium sized users of process steam.
Each boiler is individually tailored to your specific needs and manufactured from start to finish in our own factory, thereby ensuring quality control of the very highest standard. All fittings are mounted in the factory to make installation on site as quick and easy as possible.
The boiler can incorporate any make of burner to suit a wide range of gaseous or liquid fuels in single, dual or tri-fuel combinations.
The MX boiler has a thermal efficiency in excess of 89% (based on NCV) .
External surfaces are well insulated and finished in tough, Aluzinc cladding.
The front door is lined with the latest ceramic fibre technology offering significantly less heat loss than traditional refractory materials.
The MX range has larger heating surfaces and steam space than comparable boilers, meaning desirable low heat transfer rates, Low NOX emissions, easily achievable outputs, and quality dry steam throughout the firing range.
A huge range of accessories are available to further enhance the boiler; contact us for more details.
Manufactured to BS2790 Class 1 with outputs to 3MW (5000 kg/hr) and operating pressures to 17 bar(g)
|
|
| ... products without technical information |
| |
|
|
