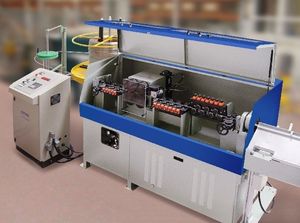

The Cattaneo STRAIGHTENERS have been designed to straighten materials of various thicknesses depending upon the model selected.
IIn the standard version, the loop is controlled by a proximity detector which functions as a start and stop control at he end of the preset time.
An additional switch is provided to protect from a tight loop emergency. |
|
|
• Strip thickness from 0.8 to 4 mm. • Support frame in welded iron pipes. • 2 rolls Ø 120 mm synchronized by a series of hardened gears. 1 deformation rolls Ø 90 mm - holded up by lower rolls with wheelbase 360 mm to deform a strip thickness of 5 mm - regulated by a handwheels. 5 lower rolls Ø 60 mm synchronized by a series of hardened gears running in oil bath - 4 upper rolls Ø 60 mm adjustable in inlet and outlet position. • The vertical displacement of the straightener is adjusted by 4 screws with 2 manually operated handwheels (optional motorised). The position of the straightening rollers is shown by two micrometer comparators.
|
|
| ... products without technical information |
| |
ARKU has been building parts levelers since the middle of the 1960s. As experts in leveling equipment, we have been synonymous with high quality expectations from the very beginning.
With its EcoMaster® and FlatMaster® ranges, ARKU offers electromechanical and hydraulic parts levelers.
The integrated leveling gap control and the quick-change straightening roll system make the FlatMaster® unique.
Parts levelers for carrying out leveling tests are permanently available in the ARKU leveling centre.
|
|
To achieve this, defects such as curvature, camber, torsion, scuff marks and ripples must be removed by the use of levelling machines. Defects result due to coiling in the rolling mill, due to slitting lines or due to the punching process. Depending on the application, these defects have negative effects on further processing.
Special characteristics are:
- Patented EcoPlan® drive system
- Easy-to-clean leveling unit
- Quick-change system for leveling rolls
|
|
DIMECO range includes more than 80 straighteners for strips from 0,1mm to 10 mm thickness and up to 2000mm wide.
Gifted with a particularly robust design, our machines are manufactured in mass production and can be fitted with a number of accessories, which improve stamping line productivity and enhance personnel safety (threading table, lateral guides...).
Maintenance programs are cut thanks to lifelong lubricated bearings (or centralized automatic lubricating system), and to the head crocodile opening for roll cleaning.
DIMECO straighteners own dedicated features to process HLSA steels or delicate material (pre-coated, copper, mirror finished aluminium...)
The « PITSTOP » configuration allows automatic strip feeding and recoiling and offers an automatic line parameters adjustment when selecting a new job in the press terminal.
All our straigtheners are delivered with adjustable speed feature. When combined with a DIMECO roll feeder, DIMECO straightener speed is automatically tuned to the press rate and to the feeder output.
Also available in combined straightener-feeder machine.
|
|
| ... products without technical information |
| |
... see all the products in the category
Presses
|
The modular AMKASYN servo inverter series KE/ KW consists of a compact supply module (KE) and different compact inverter modules (KW) in various power ranges.
Features:
- Power range up to 120 kVA
- Modular design
- Nearly limitless module arrangement
- Number of servo axes at a supply module is limited only by total power
- Cooling with coldplate technology
- Regenerative feedback optional
- Variable encoder technology standard encoder inputs for resolver, square or sine-wave encoder, EnDat, Hiperface pulse forwarding
- Multifunctional networking via powerful ACC bus
- PLC functionality optional
- Fieldbuses:
- SERCOS
- Profibus DP
- CAN
- EtherCAT
The most important advantages at a glance:
- Reduction of control cabinet space through compact devices
- Cost savings through possible integration of control cabinet in machine
- Cost-optimized solutions through modular system design
- Complex networked machines possible through precise synchronization
- Simple implementation of motion control functions through integrated PLC
- Integrated safety functions to category 4 |
|
BORA series rectifiers are designed with today's technology for charging batteries and for the DC energy necessity of the equipments which are supplied with the direct current.
Common usage areas are telecommunication, energy distribution stations, land and marine transport vehicles, industrial and military foundations and all kinds of battery charging applications. |
|
| ... products without technical information |
| |
|
Headquartered in USA, Cherokee International is a largely experienced international company manufacturing telecommunication power sources in Belgium. As one of the greatest players of the world in its own field of activity, it gives direction to the technology.
|
|
|
|
