What is TFT?
Short for thin film transistor, a type of LCD flat-panel display screen, in which each pixel is controlled by from one to four transistors. The TFT technology provides the best resolution of all the flat-panel techniques, but it is also the most expensive. TFT screens are sometimes called active-matrix LCDs.
The advantages of using TFT
High Pixel Density: > 100 ppi
Scalable Resolution: from 128 x 128 dots to SXGA
Crisp colours: high colour saturation & high contrast
Excellent readablity:
due to high contrast and wide viewing andle

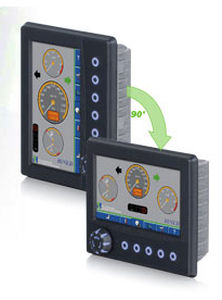

Portrait/Landscape support: by use of symmetric viewing cone
Multimedia capability: high speed
Applications of OLED technology
Today TFT displays are used in number of devices that require electronic display panel. Among most popular types of application are:
• Communications;
• Industrial;
• Marine;
• Consumer;
• Office equipment;
• White goods;
• Dynamique information displays;
This type of display can be used for almost any possible type of application due to versatility of its features and high level of electro-mechanical properties.
|
|

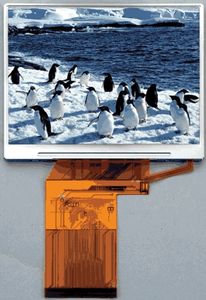

- We have 3.5" and 5.7" TFT LCD Module for Industry application
- Display Mode: Color TFT
- Pixels: 320(RGB)x240
- White LED Backlight, Digital interface
- Outline Dimension (mm): 126.08x101.54x4.74mm ---5.7"
76.9 x 63.9x3.2mm ----3.5"
- We also have optional control board for MCU interface directly and Touch panel for your choice.
|
|
Visualization with TFT :
MICRONOR work with the largest manufacturer in visualization together. By our own designing and assambly line we can offer a total solution to you, according to your requirements. In the following overview you can see the different vizualization techniques and products.
* TFT - Small Size in the sizes of 1,5" to 2,0" in 262K or Full Color with Backlight LED and Transmissive Display mode.
* TFT - Medium Size in the sizes of 3,5" to 10,4" with Backlight LED and Transmissive Display mode.
|
|
The product featured on the photo is a CSTN display.
What is CSTN?
CSTN (Colour Super-Twist Nematic) is a Liquid Crystal based Display technology that produces full-colour paper-like image. Unlike TFT, CSTN is based on a passive matrix, which is less expensive to manufacture. Recent advances in technology and manufacturing process have made CSTN an economical alternative to active matrix displays.
The advantages of using CSTN:
Economical solution
- produces TFT comparable image quality at a low cost
Easy to customize solution
- resolution and display size can be tailored to suit
customer's specification
Easy upgrade from monochrome
- Limited software and hardware modification are
necessary to run CSTN display with 8051 microcontoller
Low power consumption
- from 0.7 mW; Lower heat output
|
|
- Product designed and produced by Topway ourselves.
- Character (Alpha Numeric) display.
- Characters x Line (5x8 format):
8 x 1, 8 x 2, 16 x 1, 16 x2, 20 x 2, 20x4, 24 x 2, 40 x2
- LCD Mode: STN-Blue, Grey, YG, FSTN-Pos. Neg. as option
- LCD Controller: KS0066 or Equivalent
- We have full product line with different module size, display model, 3v/5v power supply as options.
|
|
* STN Character Display Modules in the size 8x1 to 40x2.
* STN Graphic Display in the sizes of 1,5" to 2,0" in 262K or Full Color with Backlight LED and Transmissive Display mode.
* STN Graphic Display in the sizes of 1,5" to 2,0" in 262K or Full Color with Backlight LED and Transmissive Display mode.
|
|
|
As we have solid experience on LCD module design, we also can support you on customized LCD module per all kinds of your request (either TN, STN, FSTN module), just send us your techinical specification, let us assist you on the following.
|
|
- All product designed and produced by Topway ourselves.
- Graphic (full dots) LCD display.
- All kinds of resolution:
160 x 32, 202 x 32, 128 x 64, 192 x 64, 192 x 128, 240 x 64, 256 x 64,
240 x 128, 240 x 160, 320 x 160, 320x200, 320 x 240 dots
- LCD type: STN-Blue, Grey, YG, FSTN-Pos. Neg. as options.
- LED Backlight: White, YG, Green, as option.
- LCD Controller: T6963, RA8835, S1D13700 etc. as option.
- We have full product line with different module size, display model, 3v/5v power supply as options.
|
|
TN, STN, FSTN Technologies
For segmented or alphanumeric / graphic displays; TN with colour segments and background other than B/W ;CSTN, TFT technologies
For graphic displays up to 5'' diagonal size
|
|
- Do you want to open China market? Chinese Fonts embedded products can help you to speed up your design process and improve display speed.
- All product designed and produced by Topway ourselves.
- Graphic (full dots) LCD display, we can offer the module with Chinese Fonts Library Embedded.
- All kinds of resolution:
160 x 32, 128 x 64, 192 x 128, 240 x 64,
240 x 128, 320 x 240 dots
- LCD Type: STN-Blue, Grey, YG, FSTN-Pos. Neg. as option.
- LED Backlight: White, YG, Green, as option.
- LCD Controller: ST7920, RA8803,etc.
|
|
