7-colour backlit trackballs
These panel mount industrial grade 50mm trackballs, feature 7-colour illumination of the total ball surface and the mouse button legends. Up to seven different colours can be selected by internal settings on the trackball or by remote dynamic selection via an output connector. For both selection methods, internal or remote, the illumination intensity can be dimmed. The total unit is sealed to IP65 static and comes with a silicon sponge to seal the carrier plate into the users' cabinet or console.
Two basic versions are available . One with aluminium carrier plate and two short travel switches and dark coloured polyester overlay. The other version is with stainless steel carrier plate and two long travel stainless steel switches.
The output is combo PS/2 & USB with auto-recognition and in both cases the current for the illumination is drained from the mouse ports.
Typical applications are industrial control equipment, security equipment, entertainment, naval, transportation…
|
|
- Sealing to IP68
- available in 13mm, 19mm, 25mm, 38mm and 50 mm (X50) ball sizes.
- Solid state sensing technology, Laser tracking engine
- Smooth operation in rugged environments
- Removable ball for ease of cleaning
- Ability to wash down, decontaminate, and sterilise
- Various top plate configurations
- Increased high speed tracking
- Increased resolution options
- Reduced power consumption
- Custom connector options
- VX3™ integrated zoom feature for scroll wheel functionality
- Output: PS/2 & USB or Quadrature
|
|
|
This range is highly robust and designed for harsh industrial applications, kiosk consoles, internet terminals, navigation controls, food industry, etc… This trackball unit features a vandalproof construction and all metal look; the carrier plate made of brushed stainless steel, a stainless steel ring protecting the trackball sealing and three anti-vandal stainless steel and IP65 sealed switches.
|
|
This trackball range is available in a number of desktop (free standing) units.
The range varies from durable, all-plastic construction units for educational and commercial applications to durable and proven designs for general industrial and military applications and up to ultra-rugged all metal trackballs fitted to a durable and ergonomically designed enclosures complete with heavy duty industrial switches.
All major protocols can be supported and in some cases alternative switches can be provided on request. Selected line powered options are also available on request.
|
|
The latest version of the Roller desktop trackball incorporates a latching drag key, three colour coded jack sockets for external switches, removable finger guard and USB/PS2 compatibility.
This device offers an easy to use alternative to a mouse and has proved to be very popular with users of all ages.
Captive fasteners in the base allow the device to be attached to a desk or wheelchair tray.
Features:
No additional software required
PS2/USB compatible
Removable finger guard
Mounting Points
Reversible Right/Left buttons
|
|
This unit is a solution for the users who may have difficulties with a conventional mouse. Large 63.5 cm diameter ball offers a high degree of control with many additional features as a speed control key, latching drag switch and buttons that allow only up/down or left/right movement of the cursor.
Comes complete with a switch adaptor box allowing external switches to be used in place of some of the keys on the front panel.
All of the switches on the front panel, with the exception of the speed control, can be duplicated with remote switches by using the connector on the rear of the unit.
Features:
No additional software required
PS2/USB compatible
Removable finger guard
Mounting Points
Reversible Right/Left buttons
|
|
|
For applications requiring ‘something special’ we offer a 38mm unit with backlighting. Applications include low level lighting for Military, marine or mixing desk applications to highly visible for public access kiosks.
|
|
No moving parts except the ball!
The user experience is identical to that of our conventional ‘mechanical’ units giving the high quality precision cursor movement synonymous with the TRAXSYS range. Due to the lack of mechanical or optical interaction to detect ball movement the NEW INDUCTIVE TECHNOLOGY is completely unaffected by the introduction of exterior contamination such as high opacity liquids, dust, gels etc. and will even work when completely full of sand. In essence if the ball moves the cursor will too.
|
|
CTI’s OEM industrial trackball sub-assemblies are rugged input devices designed with a precision ground ball, protected by a formed Teflon® seal in an anodized aluminum collar, rolling on ground, hardened stainless steel shafts that are supported by aerospace grade (ABEC 7) shielded bearings. The encoder discs are micro-etched metal, and together with redundant photo-transistor electronics provide very high encoder counts. This eliminates sensitivity to LED aging, which is a typical cause of trackball failures in inferior designs. These industrial trackballs are ideally suited for use in harsh environments, military vehicles, aircraft, and medical instrumentation.
For more information on this product and all of CTI's industrial products, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
Teflon® is a registered trademark belonging to DuPont™
|
|
|
A medium size trackball for general industrial or military applications. Available in sealed or unsealed versions. All common interfaces available.
|
|
|
|
|
|
CTI Electronics Corporation manufactures a complete family of high reliability (NEMA 12, IP54 rated) industrial trackballs. These rugged input devices are recommended for aerospace, medical, and military and marine applications where precision, reliability and long-term performance are essential.
These industrial trackballs have been in service for over 2 decades without the need for repair, due to the high quality of the materials used. They feature formed Teflon® sealing rings in an aluminum collar for spill resistance, aerospace grade stainless-steel bearings (ABEC 7), dual-redundant photo-transistors and precision high-count encoders. CTI’s trackballs are made of maintenance-free, hardened, stainless steel shafts, and are available with or without buttons.
CTI's industrial trackballs are also available as desktop mouse pointers, trackball mouse pointers, and OEM industrial trackballs.
For more information, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
Teflon® is a registered trademark belonging to DuPont™
|
|
Our range of panel mounted trackballs are intended for OEM applications where engineers require trouble free installations over a wide range of specialised equipment. All major protocols can be supported and full environmental verification can be provided upon request.

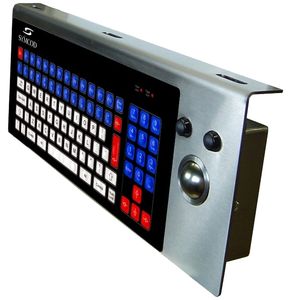

To further aid the installation of trackballs into dedicated applications these panel-mounted trackballs are available mounted on ergonomically designed fascia plates with industrial switches in support.
Please enquire for non-standard colours and other requirements.
|
|
|
A panel mounted rugged miniature trackball specifically designed for public access applications where the unwelcome attention of knives, screwdrivers, hammers, sticky drinks etc can be resisted. It looks good too !!
|
|
|
This panel mount trackball provides smooth, accurate and responsive cursor control in wet, dirty or aggressive environments. The trackball’s electronics are sealed against the ingress of fluids and dust to IP 54 specification. The robust chassis is designed to provide secure under-panel fixing for maximum resistance to hard use, abuse and vandalism.. Three click keys can be connected directly to the trackball’s on board encoding electronics via a male, square pin, 2.5mm pitch connector. Output to the host system’s PS2 or USB port is via a similar ‘on board’ connector. The Trackball detects and automatically configures to provide either PS2 or USB connectivity.
|
|
|
|
|
|
The PanelPro range of Trackball products is a high-precision family of pointing devices.
A self-adjusting seal around the ball affords the unit an IP65/NEMA 4 rating to limit the ingress of
beverage spillages fibres and other contaminants.
The stainless steel bezel has an additional protective coating to protect against porosity and
scratches.
A 3mm stainless steel shock transmission plate is optionally fitted to the underside of PanelProAV
products to give impact resistance up to 10Joules.
PanelPro and PanelProAV are the only pointing device families to combine all of the connection
formats (protocols) used in modern computer systems into a single unit. Units are capable of phase
quadrature, USB, PS/2, Microsoft, Sun and Mouse Systems formats. This allows a single unit to
operate with virtually any computer system.
Five buttons are available when using the extended functionality of USB and PS/2 formats. This
feature is fully supported by resident mouse drivers in Windows ME, 2000, XP and later. All buttons
may be configured for a number of different purposes when used with these drivers.
|
|
|
|
|
|
This unit consists of a 50mm optical IP68 trackball with removable ball and adjustable tracking force, with self-draining and flush through options and with three IP67 rated push button switches.
The whole is mounted on a blackened AISI 316 stainless steel carrier plate and supplied with a silicone sponge sealing the unit onto the customers' panel.
The ball is removable, the optical trackballs' optical lenses are then accesible and can easily be cleaned or flushed with clear water. All liquids, whether during operation or while cleaning, can also be drained via the self-draining opening and tube.
The tracking force can be set from free running (for convenient cursor control) to high force (for “freezing” the cursor when not in use) by turning the knurled ring clockwise. This feature is an advantage for “unstable” operational conditions (naval, transport, mobile,…).
Above features make this trackball unit best suited for extreme dusty environments where cleaning and/or flush through with clear water is required for optimum functionality (f.i. agressive dust like cement dust, etc..) or for salty water environments (f.i. naval navigation etc…). The adjustable tracking force is another advantage for “unstable” working conditions like for instance in the naval navigation.
This trackballtype TSW50F5 is directly plug compatible to PS/2 or USB ports and is very easy to mount.
|
|
|
|
|
|
The AP2000-BX Series has all the features of the original CTI Arrowmouse™ -high reliability, NEMA 4 sealing, low profile and small footprint- with the added benefit of illumination. These sealed industrial mouse pointers allow vertical and horizontal movement of the mouse cursors and both the left and right mouse cursors functionality.
Additionally, these industrial computer mouse pointers provide red or green LED backlighting with all power drawn only from the computer mouse port. There are ten levels of backlighting intensity, which may be easily changed by the user directly from the Arrowmouse™ keys and completely independent of the computer operating system.
Gold plated contacts ensure a very long life with over 10M activations. These sealed industrial computer mouse pointers are the most cost effective, drift free, back-lit cursor controllers available.
Rated NEMA 4 (IP66), FCC class A, CE marked (patents pending).
For more information, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
|
|
CTI's OrbitalMouse® is a sealed (NEMA 4 / IP66), drift-free button style pointer molded in silicone rubber. The design and feel of the OrbitalMouse® make it more user friendly and durable than a touchpad, and more practical for use in industrial environments.
The switches have an LED for the drag function indicator option and are integrated into a PCB, making it more compact. The dimensions are 2.56 by 2.68 inches and require less than .40 inches behind the panel. Options include backlighting (OM2200-BX) in red or green, two or three mouse buttons, and various cable styles and lengths. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.
For more information, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
|
|
50mm 3-Axis Trackball.
Three axis trackball provides not only the conventional X and Y directions but, with the addition of an outer rotating ring, a Z axis is obtainable. This 3rd axis can be used for functions such as zoom or scroll.
|
|
|
A panel mounted rugged miniature trackball specifically designed for public access applications where the unwelcome attention of knives, screwdrivers, hammers, sticky drinks etc can be resisted. It looks good too !!
|
|
|
|
|
|
Featuring a single extra-large button, CTI’s M20U1-N54 Series is a rugged Industrial Mouse™ pointing device designed for use in limited-space hand held applications.
The low-profile N54 joystick knob is sealed in a NEMA 4X (IP66) stainless steel enclosure, complete with gasket sealed bottom plate and rubber feet. Its near-waterproof design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers.
The M20U1-N54 has all the features of the Industrial Mouse™ family, and its extra large sealed button allows the operator to conveniently perform all mouse functions; even while wearing gloves. A choice from nine different joystick knobs allows for unlimited possibilities to suit your application’s unique needs. (Optionally available configured as a USB FlightStick, a.k.a. sidewinder joystick.)
In addition, an optional bulkhead waterproof cable assembly is available for simple installation of the cable through metal cabinets. CTI also offers an anodized aluminum M2000 holder for convenient storage of the M20U1-N54 series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.
For more information on this product and all of CTI's industrial products, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
|
|
CTI introduces the H20U1-N5 Series Industrial Mouse™ pointing devices, featuring a single extra-large button. These rugged NEMA 4X (IP66) pointers are designed for use in harsh, wet, and limited-space panel mounted applications.
The low-profile N5 joystick knob is attached to a stainless steel bezel for simple under-panel installation, while a neoprene gasket is combined with a six-screw mounting pattern to provide near-waterproof sealing.
The H20U1-N5 has all the features of the Industrial Mouse™ family, and its extra large sealed button allows the operator to conveniently perform all mouse functions; even while wearing gloves. A choice from nine different joystick knobs allows for unlimited possibilities to suit your application’s unique needs. (Optionally available configured as a USB FlightStick, a.k.a. sidewinder joystick.)
For more information on this product and all of CTI's industrial products, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
|
|
The M2000-N24 Series features the Industrial Mouse™ computer mouse pointer in a space-saving design. This NEMA 4X (IP66) sealed pointer features a white joystick and boot, ideal for medical applications. Designed for hand held or limited space applications and offering near-waterproof sealing, this is also the perfect solution for harsh or wet environments.
The three sealed switches perform all mouse functions and are also offered in molded white silicone rubber. An anodized aluminum M2000 holder is available for convenient storage, with holes for simple screw mounting alongside any machine or cabinet. To maintain a clean appearance in medical environments, the holder is also available in white.
For more information, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
|
|
CTI Electronics IndustrialMouse® pointers are available as desktop, hand held, and panel mounted units, and are the perfect solutions for applications requiring reliable pointing/control input devices. These Industrial Mouse® pointers and control input devices (USB FlightStick a.k.a. sidewinder joystick) are NEMA 4X (IP66), and are designed as high precision instruments capable of working in the most demanding of environments.
For more information, please visit www.ctielectronics.com or e-mail sales@ctielectronics.com
|
|
|
|
|
|
SpacePilot
The 3Dconnexion SpacePilot, replacement of the common SpaceMouse, connects you to the 3D design process like never before. Its optical sensor technology and ergonomic design combine to deliver unprecedented control and fewer distractions. Use the SpacePilot in your non-dominant hand to position, rotate, pan and zoom your model in one single, fluid motion. Use the mouse with your other hand to simultaneously edit the model or select menu items. Unique adaptive sensing technology gives you the functionality you want, the instant you want it. Commands become available on the LCD and dynamically update as you switch between applications or work in different modes within an application. Plus, an array of extendable, programmable speed keys - including Control, Fit, View and keyboard modifiers - help you stay immersed in your design.
Gone are the days when 3D navigation meant endless mouse clicks to move around an object or to fly through space and remembering how to change views and control objects within the X, Y, Z axes...one tedious step at a time. Plus, it is no longer necessary to remember different application's unique commands for manipulating 3D objects or scenes.
|
|
Anir
Benefits
• Encourages a natural vertical hand position with the thumb pointing upwards.
• Reduces muscle strain while keeping you arms and shoulders in a more relaxed position
• Special button for document scrolling
• Scientifically proved to reduce pain in neck, arms and shoulders
• Applicable for the right hand
• Available in 2 sizes (large / small-medium)
Specifications
Measurement: Large
Article code: BNEALB
Measurement: Medium/ small
Article code: BNEAMSB
|
|
Benefits
• 3 extra buttons each programmable with different functions
• Laser technology:
- Very precise and responsive
- Works on virtually any surface
• USB-connection
Dimensions (wxdxh): 130 x 65 x 35 mm;
cable length: 140 cm
Article code: BNELMD
|
|
