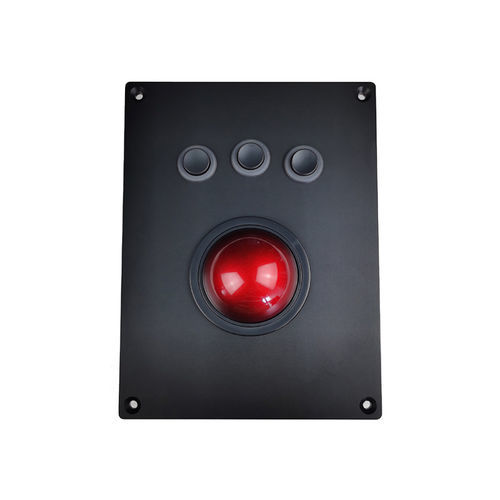

Laser trackball KH-M60TB-129-LP3

panel-mount60 mmwaterproof

Product overview

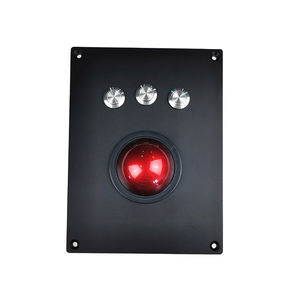

The KH-M60TB-129-LP3 is a rugged, standalone industrial trackball designed for reliable and precise cursor control in maritime and harsh industrial environments. It features a 60mm overall bezel diameter with a resin trackball, a titanium-black high-strength alloy front panel, IP65 sealing and a mounted design suitable for integration into marine vessel consoles, industrial control panels and specialized workstations.

Ideal for integration into marine vessel consoles, industrial control panels, and specialized workstations requiring durable and high-precision cursor control.

Features

• 60mm overall bezel diameter with a resin trackball
• Optional two-colour balls: red, black
• Titanium black high-strength alloy front panel
• Mounted design
• IP65 waterproof and dustproof rating (front)
• Three tactile buttons (Left, Middle, Right)
• Shock-resistant and waterproof construction
• USB and PS/2 interface options

Specification/Caractéristiques / spécifications techniques

• Model: KH-M60TB-129-LP3
• Dimensions: 129 x 172 mm
• Bezel / ball diameter: 60 mm overall (resin ball)
• Front panel material and color: High-strength alloy, titanium black
• Mounting: Panel-mounted design for consoles and control panels
• Buttons: Three tactile buttons (Left / Middle / Right)
• Ingress protection: IP65 (front), dustproof and waterproof construction
• Interfaces: USB, PS/2 (and other options)
• Power: 5.0V DC ±5%
• Operating temperature: -30°C to +70°C; Storage temperature: -35°C to +75°C
• Humidity tolerance: 30–95% RH
• Atmospheric pressure operating range: 60–106 Kpa
• Reliability: MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
• Certifications: CE, ROHS, FCC
