Laser trackball KH-M60TB-129

panel-mount60 mmwaterproof

Product Overview

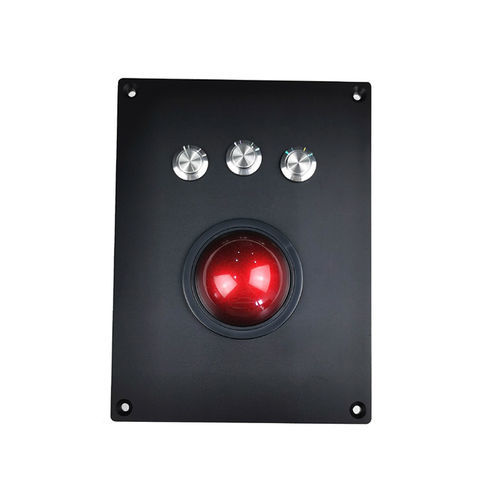

The KH-M60TB-129 is a panel-mount trackball designed for integration into specialized equipment. It features a 60 mm resin ball, three round waterproof keys and a high-strength alloy front panel with titanium black electroplated finish.

The unit supports custom layouts and dimensions for bespoke installations across marine, medical, transportation and industrial systems.

Applications
Suitable for integration into marine consoles, medical devices, transportation control panels and industrial machinery where a sealed, durable and configurable pointing device is required.

Features

• 60 mm overall diameter resin trackball
• Optional two-colour balls: red or black
• Three round waterproof buttons: Left, Middle, Right
• Stainless high-strength alloy front panel with titanium black electroplated finish
• IP65 front-panel waterproof and dustproof rating
• Panel-mount design for secure installation
• Multiple interface options: USB, PS/2 or others
• Support for custom mechanical layouts and dimensions

Notes
Designed for long-life operation with customizable mechanical and layout options to suit integration into specialized systems.

Technical specifications

• Model: KH-M60TB-129
• Trackball diameter: 60 mm (overall)
• Panel dimensions: 129 x 172 mm
• Front panel material/finish: high-strength alloy, titanium black electroplated
• Buttons: 3 waterproof round buttons (L/M/R)
• IP rating: IP65 front-panel protection
• Interfaces: USB, PS/2 or other options
• Power: 5.0V DC ±5%
• OS support: Windows (all), Vista, Linux, Unix, Mac OSX, iOS, Android
• Operating temperature: -30°C to +70°C; Storage temperature: -35°C to +75°C
• Humidity tolerance: 30–95% RH
• Atmospheric pressure: 60–106 Kpa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
