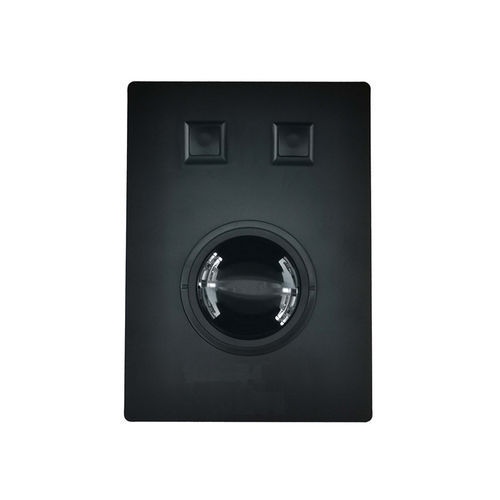

Mechanical trackball KH-M50-100

panel-mount2 inch (50 mm)waterproof

Product overview
The KH-M50-100 is a trackball module for integration into maritime and industrial control panels. It features a 50 mm resin ball, a waterproof front panel and two waterproof button switches. Interfaces include USB and PS/2, with other interface options and customizable layouts available.

Place of Origin: China.
Brand: CNKHTECH.
Compliant Standard: CE / ROHS / FCC.

Features

• 50 mm resin trackball
• Two waterproof stainless-steel pushbutton switches
• Stainless-steel front panel with black titanium electroplated finish
• USB and PS/2 interfaces (other interfaces optional)
• Support for customizable layouts

Specifications

• Dimensions: 100 x 140 mm
• Ball diameter: 50 mm
• Keys: 2 (left, right)
• Front panel: stainless steel, black titanium electroplated finish
• Interface: USB, PS/2 or others
• Power supply: 5.0 V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -30°C to +70°C; Storage: -35°C to +75°C
• Humidity: 30–95% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
