Laser trackball KH-M60TB-129-F3

panel-mount60 mmprecision

Product description

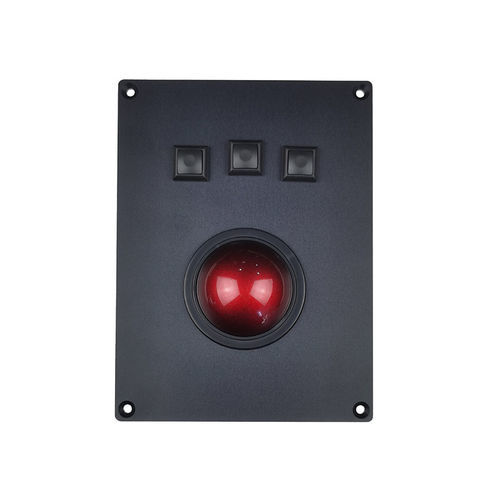

The KH-M60TB-129-F3 is a panel-mount marine trackball engineered for precise cursor control in harsh marine and industrial environments. It provides a 60 mm overall diameter (bezel + ball) and three dedicated mechanical buttons for left, middle and right functions.

The front panel is a high-strength alloy with titanium-black electroplated finish and IP65 sealing at the front for splash and dust protection, making it suitable for ship bridges, control consoles and outdoor marine equipment.

Features

• 60 mm overall diameter trackball (bezel + ball)
• Optional two-colour balls: red, black
• Three dedicated buttons: Left, Middle, Right
• High-strength alloy front panel, titanium-black electroplated
• IP65 front protection against water and dust
• Panel-mount design for flush integration into consoles and enclosures
• Interface options: USB, PS/2 or other interfaces on request
• Custom layout and OEM integration support

Applications

• Ship bridge consoles and navigation stations
• Marine control panels and fleet equipment
• Outdoor and onboard instrumentation
• Industrial control rooms requiring sealed pointing devices

Technical specifications

• Model: KH-M60TB-129-F3
• Dimensions: 129 x 172 mm
• Ball diameter: 60 mm overall (bezel + ball)
• Front panel material/finish: High-strength alloy, titanium-black electroplated
• OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
• Ingress protection: IP65 (front)
• Interfaces: USB, PS/2 or other options
• Power: 5.0 V DC ±5%
• Operating temperature: -30°C to +70°C (storage: -35°C to +75°C)
• Humidity tolerance: 30–95% RH
• Atmospheric pressure: 60–106 Kpa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
