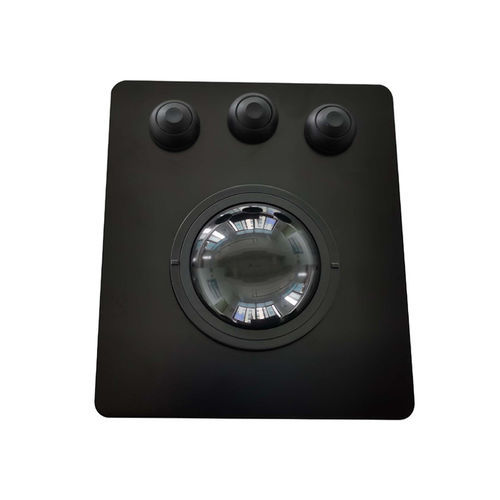

Laser trackball KH-M50-F5

panel-mount2 inch (50 mm)waterproof

Product Overview
The KH-M50-F5 is a precision industrial trackball mouse with a 50 mm resin ball, IP65-rated front protection and a black titanium electroplated stainless steel front. Designed for high-precision cursor control and reliable three-button operation in demanding environments.

Application:
Suited for industrial workstations, marine control consoles, medical equipment and other specialized applications requiring sealed, durable pointing devices.

Features

• 50 mm resin trackball module
• Black titanium electroplated stainless steel front surface
• Waterproof and dustproof (IP65 front protection)
• Three buttons: Left, Middle, Right
• High-precision optical sensor for stable tracking
• USB interface (also available: PS/2 or other interfaces)

Technical specifications

• Model: KH-M50-F5
• Place of origin: China
• Certifications: CE / ROHS / FCC
• Dimensions: approx. 100 x 116 mm
• Keys: 3 keys (Right, Middle, Left)
• Front panel: Black titanium electroplated color, stainless steel
• Ball diameter: 50 mm
• Interface: USB, PS/2 or others
• Power supply: 5.0 V DC ±5%
• OS compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
• Temperature range: Storage -35°C to +75°C; Operating -30°C to +70°C
• Protection level: IP65 (front)
• Humidity: 30–95% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
