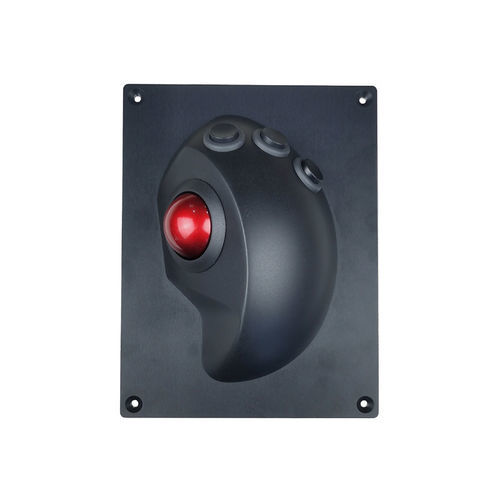

Ergonomic trackball KH-TB-V3-3

laserpanel-mount34 mm

Overview
The KH-TB-V3-3 is a rugged, flush-mount trackball engineered for critical applications in high-vibration environments. It features an integrated outer anti-drop ring that securely holds the trackball in place to prevent accidental dislodgement. The unit is constructed with a titanium black alloy front panel and sealed construction for reliable cursor control in maritime, vehicle-mounted and other harsh industrial environments.

Application:
Ideal for integration into naval vessels, military vehicles, mobile machinery, and industrial control panels where secure, vibration-proof cursor control is essential.

Features

• Integrated anti-drop ring secures the trackball
• Panel mount (flush-mount) version
• Ergonomic mouse-shaped design
• Titanium black alloy front panel
• Three buttons: Left, Middle, Right
• Shock-resistant and waterproof construction
• Interface options: USB or PS/2 (and others)

Specifications

• Dimensions:129 x 172 mm
• Keys:3 keys (right, middle, left)
• Front Panel:Interface USB, PS/2 or others
• Trackball Diameter:34MM Resin Ball
• Power Supply:5.0V DC ±5%
• OS Compatibility:All Windows versions, Vista/Linux/Unix/Mac OSX/iOS/Android
• Temperature Range:Storage: -30°C to +85°C
• Operating: -25°C to +80°C
• Humidity:30–95% RH
• Atmospheric Pressure:60–106 Kpa
• MTBF> 50000H;MTTR< 30 min
• Warranty:1-year limited warranty

Technical details

• Model: KH-TB-V3-3
• Place of Origin: China
• Brand: CNKHTECH
• Certification: CE / ROHS / FCC
• Mounting: Flush / panel mount
• Front panel material: high-strength alloy, titanium black finish
• Ball diameter/material: 34 mm resin
• Power: 5.0V DC ±5%
• Interfaces: USB, PS/2, others (optional)
• Operating temperature: -25°C to +80°C; Storage: -30°C to +85°C
• Relative humidity: 30–95% RH
• Atmospheric pressure: 60–106 Kpa
• MTBF > 50,000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
