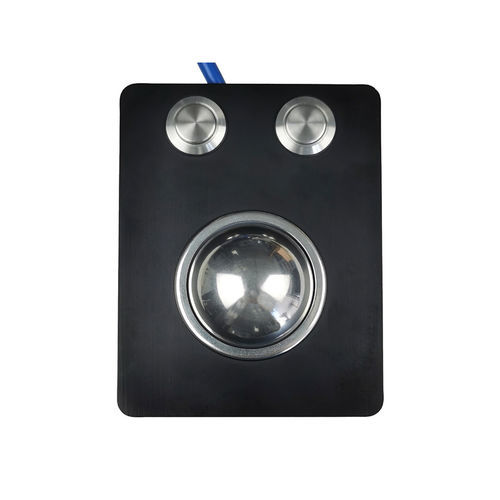

Rugged trackball KH-M45-100

laserpanel-mount45 mm

Product Summary
The KH-M45-100 is a panel-mount industrial trackball offering fundamental cursor control in harsh environments. It features a 45 mm stainless steel ball inside a metal ring, two dedicated buttons (Left, Right) and a stainless steel front panel. Designed for low-maintenance pointing in control panels and industrial machinery. Place of Origin: China
Brand: CNKHTECH
Compliant Standard: CE / ROHS / FCC

Application Area
Designed for integration into operator panels, HMI enclosures and industrial equipment where a compact, sealed pointing device with basic left/right button control and panel-mount installation is required.

Features

• IP65 rated industrial stainless steel trackball (front)
• Two dedicated mechanical buttons (Left, Right)
• High-technology optical navigation sensor
• Robust panel-mount metal construction
• Stainless steel components for corrosive or hygienic environments
• Interfaces: USB, PS/2 or other options
• Custom layout and interface options available

Specifications

• Model: KH-M45-100
• Ball diameter: 45 mm
• Front panel material: Stainless steel
• Mounting: Panel-mount metal construction
• Buttons: 2 (Left, Right)
• Protection: IP65 (front)
• Interfaces: USB, PS/2 and other options
• Power: 5.0V DC ±5%
• OS compatibility: Windows / Vista / Linux / Unix / Mac OSX / iOS / Android
• Operating temperature: -20°C to +70°C; Storage temperature: -25°C to +75°C
• Humidity: 30–95% RH
• Atmospheric pressure: 60–106 Kpa
• MTBF: > 50,000 hours
• Warranty: 1-year limited
