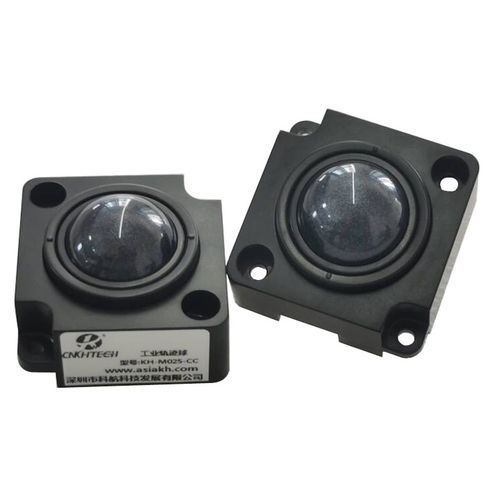

Laser trackball KH-M025-CC

panel-mount1 inch (25 mm)waterproof

Product Overview
The KH-M025-CC is a compact, high-precision 25 mm industrial trackball module designed for precise and reliable control in space-constrained industrial and medical applications. It features a 25 mm black resin ball, three function buttons (Left, Middle, Right) and a high-performance sensor validated for durable operation in harsh environments.

The module is suited for integration into medical diagnostic equipment, portable testing devices, compact industrial consoles and specialized control panels where precision and proven reliability are required.

Features

• 25 mm diameter trackball module
• Black resin ball
• IP65 rated waterproof and dustproof (front)
• Provides three function buttons (Left, Middle, Right)
• High-performance sensor for superior control
• Interface options: USB, PS/2 or others

Technical characteristics

• Model: KH-M025-CC
• Trackball diameter: 25 mm (resin ball)
• Module dimensions: 44 x 44 x 18 mm
• Protection level: IP65 (front), waterproof & dustproof
• Buttons: Can offer for function buttons – Left /Right
• Interfaces supported: USB, PS/2 and other options
• Power: 5.0V DC ±5%
• OS compatibility: Windows, Vista, Linux, Unix, Mac OSX, iOS, Android
• Operating temperature: -30°C to +70°C; Storage: -25°C to +75°C
• Humidity tolerance: 30–95% RH
• Atmospheric pressure range: 60–106 Kpa
• MTBF > 50,000 hours;
• MTTR < 30 min
• Warranty: 1-year limited warranty
