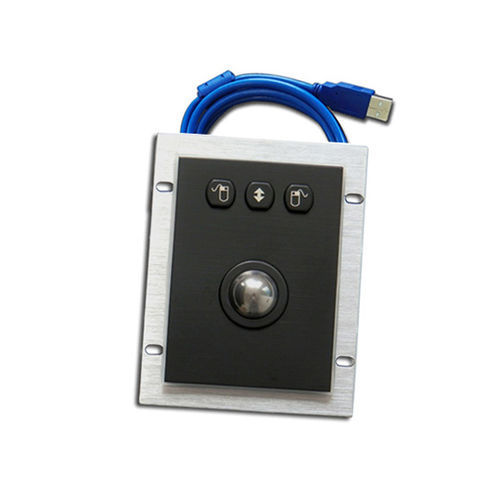

Laser trackball KH-M25-80B

panel-mount1 inch (25 mm)USB

Product Overview
The KH-M25-80B is a compact and rugged trackball module, distinguished by its electro-black finish on both panel and keys. It maintains the core performance of the series with a precise 25mm stainless steel ball, laser tracking technology, and full-metal construction, offering smooth, quiet, and durable cursor control in demanding industrial environments. Ideal for integration into compact industrial control panels, medical devices, and equipment where a small, robust, and precise pointing device with a specific aesthetic is required.

Features

• Electro-black panel and keys
• 25mm stainless steel ball
• Laser encoders providing high resolution, fast and reliable positioning data
• All-metal construction for durability
• Three buttons (Left, Middle, Right)
• IP65 front panel: waterproof, dustproof, vandal-resistant
• USB or PS/2 interface (or other interface options)

Certifications & Origin
Place of Origin: China.
Certifications: CE / ROHS / FCC.

Caractéristiques / Spécifications techniques

• Model: KH-M25-80B
• Dimensions: 80 x 110 mm
• Keys: 3 keys (right, middle, left)
• Front panel material / color: Stainless steel (Black color)
• Ball diameter: 25 mm
• Interface: USB, PS/2 or others
• Power supply: 5.0V DC ±5%
• OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OS X / iOS / Android
• Temperature range: Storage: -35°C to +75°C; Operating: -30°C to +70°C
• Protection level: IP65 (front)
• Humidity: 30–95% RH
• Atmospheric pressure: 60–106 KPa
• MTBF: > 50,000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
