Laser trackball KH-M45-F5

panel-mount45 mmwaterproof

Product Overview

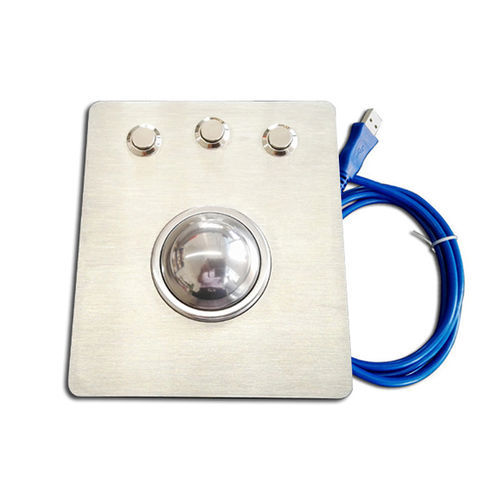

The KH-M45-F5 is a panel-mount industrial trackball engineered for demanding environments. It integrates a 45 mm stainless steel ball in a metal ring and three round buttons (left, middle, right) with high-precision optical navigation.

Designed for integration into control panels, machinery and equipment exposed to dust and water where reliable pointing and long service life are required.

Features

• 45 mm overall diameter trackball
• Three waterproof round buttons (Left, Middle, Right)
• High-technology optical navigation
• IP65 rated — waterproof and dustproof (front)
• Metal panel-mount housing
• Stainless steel materials for corrosion resistance
• Interface options: USB, PS/2 or others
• Custom layout and configurations available

Specifications
Dimensions: 100 x 116 mm
Keys: 3 keys (left, middle, right)
Front panel: Stainless steel
Ball diameter: 45 mm (overall)
Interface: USB, PS/2 or others
Power supply: 5.0V DC ±5%
OS compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
Storage temperature: -25°C to +75°C
Operating temperature: -20°C to +70°C
Protection level: IP65 (front)
Humidity: 30–95% RH
Atmospheric pressure: 60–106 KPa
MTBF: >50000H
MTTR: Warranty: 1-year limited warranty
