Laser trackball KH-M45-100A

panel-mount45 mmwaterproof

Product Overview

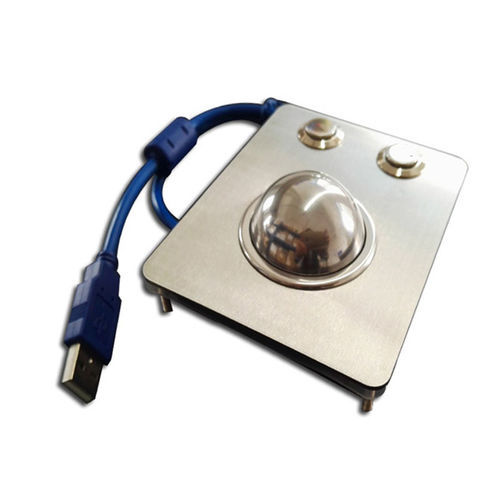

Panel-mounted IP65 trackball mouse for industrial control panels and machinery. Features optical navigation, a 45 mm stainless steel ball and waterproof circular buttons for reliable, low-maintenance cursor control in harsh environments.

Ideal for integration into industrial control panels and machinery/device that needs the rugged trackball with fundamental left/right button control is required.

Features

• IP65 front-rated stainless steel trackball
• Optical navigation sensor
• Two dedicated buttons: left and right
• Panel-mount metal housing; can be mounted horizontally or vertically
• 45 mm stainless steel ball for long service life
• Interfaces: USB, PS/2 and others
• Custom layout available on request

Specifications

• Dimensions: 78 x 100 mm
• Keys: 2 (left, right)
• Front panel material: stainless steel
• Ball diameter: 45 mm
• Interface: USB, PS/2 or others
• Power supply: 5.0V DC ±5%
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -20°C to +70°C
• Storage temperature: -25°C to +75°C
• Protection level: IP65 (front)
• Humidity: 30–95% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 h
• MTTR: < 30 min
• Warranty: 1-year limited warranty
