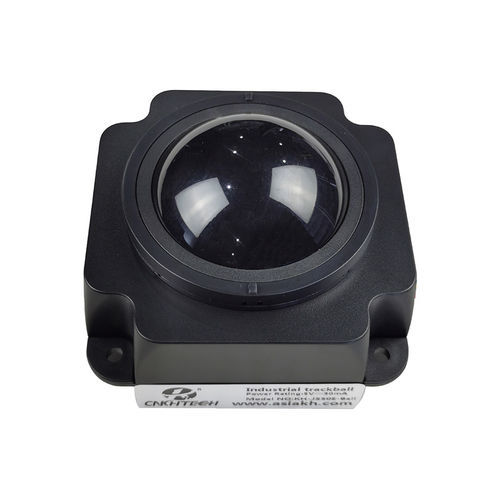

Mechanical trackball KH-M50-TB

panel-mount2 inch (50 mm)waterproof

Product overview
The KH-M50-TB is an industrial-grade resin trackball module with a 50mm ball and three function buttons. Designed for integration into control panels, imaging consoles and specialized workstations where precise pointing and durable protection are required.

Place of Origin: China.
Brand: CNKHTECH.
Model: KH-M50-TB.
Certifications: CE, ROHS, FCC.

Features

• 50mm resin ball for large-format control
• Three function buttons (Left, Middle, Right)
• Waterproof and dustproof front panel (IP65)
• High-performance optical sensor for accurate tracking
• Interface options: USB, PS/2 or others
• Designed for reliable operation in industrial environments

Specifications

• Model: KH-M50-TB
• Ball diameter: 50 mm (resin)
• Dimensions: 70.6 x 70.6 x 34 mm
• Interface: USB, PS/2 or others
• Power supply: 5.0V DC ±5%
• OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -30°C to +70°C; Storage temperature: -25°C to +75°C
• Protection level: IP65 (front), waterproof and dustproof
• Humidity: 30–95% RH
• Atmospheric pressure: 60–106 Kpa
• MTBF: > 50000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty
• Place of origin: China
• Certifications: CE / ROHS / FCC

Applications

• Industrial control panels and HMIs
• Medical imaging consoles and diagnostic workstations
• Public information kiosks and ruggedized terminals
• Military and marine control stations
