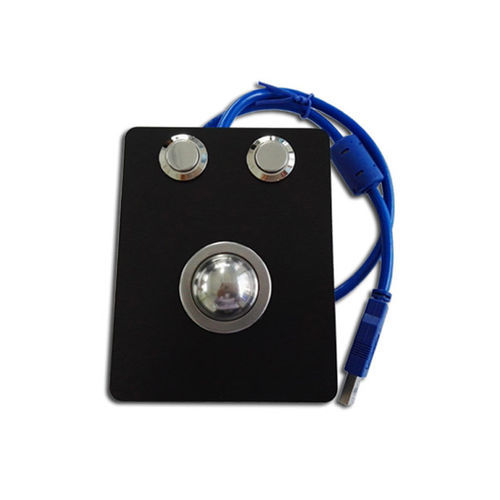

Laser trackball KH-M33-100

panel-mount33 mmprecision

Product Overview
The CNKHTECH KH-M33-100 is a precision panel-mount trackball designed for industrial control and human-machine interface applications that require rapid response and high pointing accuracy.
It integrates a 33 mm stainless-steel ball, all-metal mechanical construction and rate-sensitive dynamic resolution to combine fast cursor acceleration with single-pixel precision at low speeds.

Place of Origin: China.
Brand Name: CNKHTECH.
Certification: CE / ROHS / FCC.

Features

• 33 mm overall diameter ball for precise input
• Laser encoders for high-resolution, fast and reliable position signals
• Two round buttons (left and right) optimized for panel operation
• Smooth, quiet and durable all-metal construction
• IP65-rated front-panel protection for dust and splash resistance
• Multiple interface options: USB, PS/2 or custom interfaces
• Custom front-panel layout and key mapping available

Technical specifications

• Model number: KH-M33-100
• Ball material: Stainless steel
• Mechanical construction: All-metal
• Panel mount type: Front-panel mount with IP65 protection
• Encoder type: Laser encoders
• Button configuration: Two round buttons (left and right)
• Interface options: USB, PS/2 and custom interfaces
• Operating temperature: -20°C to +60°C
• Storage temperature: -25°C to +75°C
• Relative humidity: 30–95% RH
• Atmospheric pressure range: 60–106 Kpa
• MTBF > 50000 hours;
• MTTR < 30 minutes
• Warranty: 1-year limited warranty
