Laser trackball KH-M25-67B

panel-mount1 inch (25 mm)vandal-proof

Product Overview

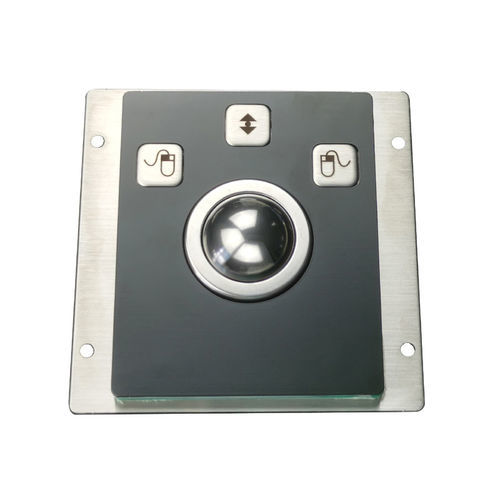

The KH-M25-67B is a compact panel-mount stainless steel trackball with a black front panel and three function keys (Left, Middle, Right). Its 25mm stainless steel ball and reduced panel footprint provide a space-saving, durable pointing solution for cursor control and scrolling in constrained industrial and equipment environments.

Key Features

• IP65-rated front protection for industrial environments
• Black stainless steel front panel (stainless finish optional)
• Three keys: Left, Middle, Right with customizable markings
• Laser encoders for high-resolution, fast and reliable positioning data
• Compact dimensions suitable for space-limited installations
• Interface options: USB, PS/2 and others

Product Information
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE / ROHS / FCC
Model Number: KH-M25-67B

Specifications

• Dimensions: 67 x 82 mm
• Ball diameter: 25 mm (stainless steel)
• Front panel material: Stainless steel (black finish standard; stainless finish optional)
• Keys: 3 (Left, Middle, Right) with customizable markings
• Interface: USB, PS/2 or others
• Power: 5.0V DC ±5%
• Protection: IP65 (front)
• Operating temperature: -30°C to +70°C; Storage: -35°C to +75°C
• Humidity tolerance: 30–95% RH
• Atmospheric pressure: 60–106 Kpa
• Reliability: MTBF > 50000 hours; MTTR < 30 minutes
• Certifications: CE, ROHS, FCC
