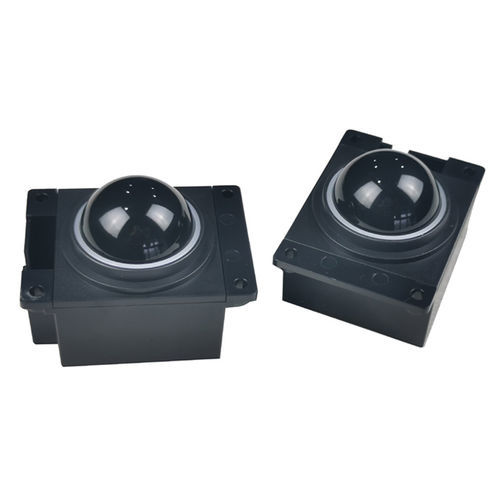

Laser trackball KH-M45ball

panel-mount45 mmwaterproof

Product overview
The KH-M45ball is an industrial resin trackball module with a 45 mm ball, engineered for precise cursor control and reliable panel-mounted operation in harsh environments.

It is suitable for integration into industrial control panels, marine equipment, medical devices, vehicle-mounted systems and other professional applications requiring a sealed pointing device.

Applications

• Industrial control panels and HMIs
• Marine and offshore consoles
• Medical instrumentation and diagnostic equipment
• Vehicle-mounted systems (rail, automotive, military)
• Kiosks and public terminals in demanding environments

Key features

• 45 mm resin ball (optional three-colour variants: red, black, silver)
• Durable mount construction for panel integration
• Front panel protection IP65 (waterproof and dustproof)
• High-performance optical sensor for accurate tracking
• Interface options: USB, PS/2 (other interfaces available on request)
• Wide OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OSX, iOS, Android

Technical specifications

• Product type: Industrial resin trackball module (KH-M45ball)
• Ball diameter: 45 mm (resin)
• Physical dimensions (W×H): 76 × 54 mm
• Power supply: 5.0 V DC ±5%
• Protection level: IP65 (front)
• Operating temperature: -30°C to +70°C
• Storage temperature: -25°C to +75°C
• Humidity range: 30–95% RH
• Atmospheric pressure: 60–106 kPa
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Warranty: 1-year limited warranty

Compliance & ordering
The KH-M45ball is delivered with panel-mount hardware and available with custom interface options on request. Contact the supplier for colour variants, integration support and ordering codes.
