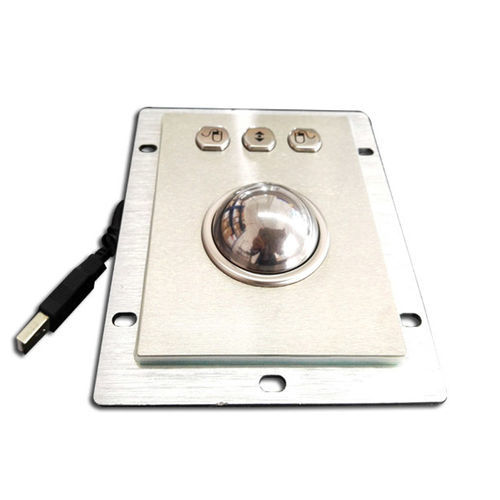

Laser trackball KH-M45-80

panel-mount38 mm45 mm

Overview
The KH-M45-80 is an industrial panel-mount trackball engineered for reliable, low-maintenance cursor control in harsh environments. It incorporates a 45 mm stainless steel ball within a metal ring, three independent buttons (Left, Middle, Right) and a front panel rated IP65.

Place of Origin: China.
Brand Name: CNKHTECH.
Compliant Standard: CE / ROHS / FCC.

Application:
Designed for integration in industrial control panels, marine consoles and machinery where durability and precise pointing are required.

Features

• IP65-rated stainless steel front for splash and dust protection
• High-precision optical navigation sensor for accurate cursor control
• Three dedicated buttons (Left, Middle, Right) for independent input
• Robust panel-mount metal construction suitable for industrial use
• Stainless steel ball and ring for wear resistance
• Multiple interface options: USB, PS/2 or custom interfaces
• Customizable button layout and panel cutout on request

Specifications:

• Dimensions: 80 x 110 mm
• Keys: 3 keys (Left, Middle, Right)
• Front Panel: Stainless steel
• Ball Diameter: 45 mm (overall)
• Interface: USB, PS/2 or others
• Power Supply: 5.0V DC ±5%
• OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
• Storage Temperature: -25°C to +75°C
• Operating Temperature: -20°C to +70°C
• Protection Level: IP65 (front)
• Humidity: 30–95% RH
• Atmospheric Pressure: 60–106 Kpa
• MTBF: > 50,000 hours
• MTTR: < 30 min
• Warranty: 1-year limited warranty
