Laser trackball KH-M60-TB

panel-mount60 mmUSB

Overview

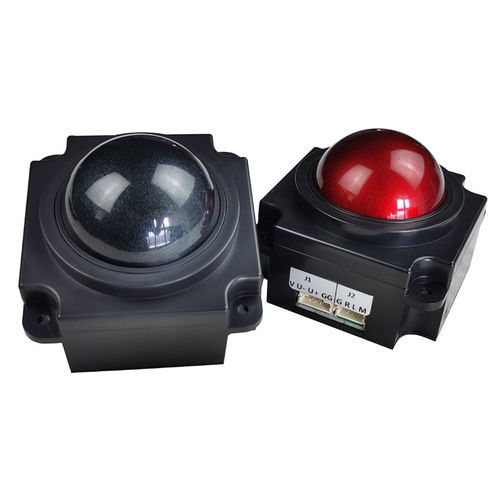

Waterproof 60 mm oversized trackball validated for harsh environments, designed for precise panel-mount control in marine, industrial and medical applications. The KH-M60-TB features a 60 mm resin ball (black or red optional) and three function buttons for reliable operator input.

Applications

• Marine vessel consoles
• Heavy industrial control rooms
• Medical imaging equipment
• Other critical environments requiring a large, validated trackball for precise control

Features

• 60 mm overall diameter resin trackball
• Ball color: black or red (optional)
• Three function buttons (Left, Middle, Right)
• Validated by environmental tests: salt spray (96h), moisture (21 days), high temperature drying (10 days)
• High-performance sensor for precise control
• Interface options: USB, PS/2 or other interfaces

Certifications & Origin

• Place of Origin: China
• Brand: CNKHTECH
• Certifications: CE / ROHS / FCC
• Model Number: KH-M60-TB

Specifications

• Dimensions: 72 x 72 x 33.50 mm
• Catalogue: Trackball Module
• Ball Diameter: 60 mm (overall)
• Interface: USB, PS/2 or others
• Power Supply: 5.0V DC ±5%
• OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
• Temperature Range: Storage: -25°C to +75°C; Operating: -30°C to +70°C
• Protection Level: IP65 (front)
• Humidity: 30–95% RH
• Atmospheric Pressure: 60–106 KPa
• MTBF: > 50000 H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
