CTF models
Maximum operating temperature of 1200°C
Tube diameters of 65, 75 and 100mm
Heated lengths of 550, 700 & 900mm
These models utilise a resistance wire heating element wound around a ceramic worktube, forming an integral part of the heating element to ensure excellent thermal uniformity
Rapid heat up to operating temperature
Can be adapted to allow a non-oxidising atmosphere or vacuum, by fitting an additional worktube and end seals
The thermocouple is located in a protected position between the outside of the worktube and heating element, allowing the full worktube diameter to be used
Normally built on the horizontal base pictured left, this furnace range can optionally be mounted vertically with a separate control box
Applications in materials research include testing of novel materials under strict temperature and varying atmosphere conditions
Applications in the electronics industry include testing electronic components and semiconductor materials under inert atmospheres or vacuum
Applications in instrumentation include testing of temperature sensors such as thermocouples and PT100's, which may require enhanced thermal uniformity
|
|

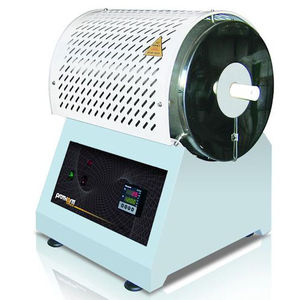

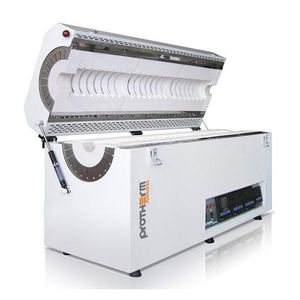

· Definition : electric tube furnace, for all applications.
· Construction : robust construction of bent plate.
· Insulation : multilayer insulation. Refractory bricks.
· Heating: coil resistors around the heating chamber.
· Electricity : max. temperature from 1200°C, voltage 1x230V. Max temperature from 1400°C: 2x400V. From 1500 to 1600°C, 3x400V, frequency 50Hz.
· Regulation :1 thermocouple. Axron PID temperature controller.
· Documentation : certification CE and operating instructions in English.
· Versions : models on demand, max. 4 temperatures available, length of chamber from 250 up to 900 mm. diameter of tube from 20 up to 105 mm.
|
|
Tube Furnaces VCTF 7 sizes from 15 to 100mm diameter. Up to 1200°C
VCTF 1 - 7 are a range of horizontal, single, cylindrical tube furnaces.
Choice of digital controllers, (see seperate information)
Heating is via resistance wire elements wound directly on to the ceramic tube
Single phase 230 / 240 volts
High grade insulation, with a double skin design, ensures a low outer case temperature
Powder coating finish
Can be supplied on a frame for use in the vertical or horizontal orientation (optional extra)
3 zone heat control (optional extra)
Work tubes and stainless steel gas tight ends (optional extra)
Typical users, Analytical research, universities, chemical analysis
|
|
|
|
