The S 1.5 is a single-stage, oil-sealed rotary vane pump with a gas ballast valve. It is driven by a flange mounted AC motor. The shaft of the pump and the shaft of the motor are linked by means of a pinned coupling.
Advantages to the User
Very small and light-weight
Low ultimate pressure
High water vapor tolerance
Low noise operation
Simple to connect
Easy to maintain and use
Typical Applications
In all areas of vacuum engineering where a low intake pressure is required
Evacuation of refrigerant circuits
For suction, lifting, emptying, filling and tensioning
For installation in mobile instruments
Supplied Equipment
DN 16 small flange connection on the intake side
Centering ring and clamping ring
Exhaust port designed as a DN 6 hose nozzle
Carrying handle
Built-in ON/OFF switch and overcurrent circuit breaker
Oil filling
|
|
|
|
|
|

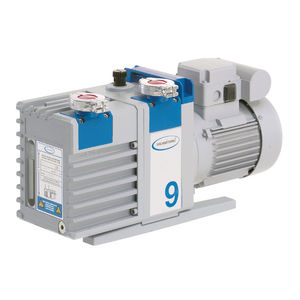

The proper use for rotary vane pumps XS is in the 1 mbar to 10-3 mbar range. VACUUBRAND oil sealed rotary vane vacuum pumps are high performance, direct drive vacuum pumps of one stage (RE) or two stage type (RZ). With small dimensions and various direct mounted accessories such as separators, full-flow oil filters with maintenance indicator and oil mist filters they are all-rounders in fine vacuum generation. Especially for applications in chemistry laboratories, they offer a high vapour capacity for water and solvents and an active corrosion protection through an oil shut-off circuit, keeping the module under vacuum and stopping corrosives from entering the pump during non-operation.
high conductance inlet
high pumping speed even at low vacuum
high vapour tolerance
for water and solvents through gas ballast about to 10% of pumping capacity. Quieter running and good ultimate vacuum even with gas ballast.
anti-corrosion design
important inner surfaces mechanically ground and plasma treated. Oil shut-off device against corrosive gases entering the pump whilst switched off.
new lubrication circuit and large oil volume
for quiet operation and longer service intervals
compact design
smaller dimensions, low weight, ease of maintenance through telescopic design
|
|
VACUUM PUMPS with rotary pallets, load factor of 100%, with lubrication forced by oil injection in closed circuit.
Standard equipment: Radiator of oversize cooling, direct drive by engine IP 55 and elastic joining, non-return valve with the aspiration, ballast of air, filters separating aerosol of high effectiveness.
- Flow: 5 to 1000 m3/h,
- Max. Vacuum: 0,5 mbar ABS,
- Engine: 0,13 kw to 22 kw.
|
|
- combination of a diaphragm pump with a rotary vane pump
- for the fine-vacuum range in special applications, e.g. for aggressive gases and vapours, for evacuation of solvent recovery vapours, for pumping of vapours which are soluble in oil
- example of use: freeze drying
|
|
Simplicity of design with only one shaft and direct drive produces robust, long-lasting pressure/vacuum generators compressors with low maintenance and running costs. These pressure/vacuum generators operate completely oil-free; the individual chambers are separated by long-life vanes. Already featuring integrated intake filter and control valve, these pressure/vacuum generators can be fitted with other accessories without a problem. The blast air cooler, which is also integrated, guarantees a very low blast air temperature. The compact cover ensures low noise and heat emission. The combined pressure/vacuum generators are additionally equipped with a second intake. This provides the capability of making minor adjustments to the suction and pressure side as well as to high blast air volumes. By way of option, the second intake can also be used as a second low-vacuum suction air supply. Optional corrosion protection also makes these vacuum pumps suitable for extracting moist air.
|
|
Rotary vane vacuum pumps, oil-lubricated
Simplicity of design with only one shaft and direct drive produces robust, long-lasting vacuum pumps with low maintenance and running costs.
Rotary vane pumps, oil-free
Simplicity of design with only one shaft and direct drive produces robust, long-lasting vacuum pumps with low maintenance and running costs.
|
|
Advantages:
- high water vapour tolerance
- high reliability
- low weight
- small dimensions
- quiet running
- high pumping speed
- optimal ultimate pressure
- easy to service
- low maintenance
Ranges of application:
- ideally suited for use in the laboratory
- freeze drying
- process engineering
- backing pump for turbomolecular pumps, root pumps, etc.
|
|
DRY
Tough, compact construction
Minimum maintenance
Excellent heat dissipation
Capacity from 2 to 25 m3/h
Maximum vacuum level 700 mmHg (92% vacuum)
DRIP-FEED LUBRICATION
Minimum oil dispersion
Low noise and vibration free
Capacity from 2 to 150 m3/h
Maximum vacuum level 720 mmHg (95% vacuum)
Available with total loss lubrication, for all applications in which the intake air contains a high percentage of harmful liquids or gasses
OIL BATH LUBRICATION
Oil bath lubrication combined with a new design release reservoir that ensures silent operation and the complete removal of oil spray
Capacity from 20 to 300 m3/h
Maximum vacuum level 759 mmHg (99% vacuum)
|
|
The R 5 Compact range of pumps shares the same design features as the R 5 standard range, but they are optimised for use in applications and machines where space is limited.
They also inherit the wide operating range, easy adaption, continuous operation and excellent operating record of the R 5 range and their compact design makes them easy to service.
No preventative maintenance apart from routine oil changes is required.
Features
* Proven reliability, also under continuous operation
* Air-cooled – no water needed
* Excellent water vapour tolerance
* Standard mounted oil mist eliminator
* Easy maintenance
Application
Ideal for use in Packaging, Chemical & Pharmaceutical Industry, Plastics, Printing and Paper, Food, Beverage, Wood, Pneumatic Conveying, Brick Making, Drying and Impregnation, Adsorption and Degassing, Handling, Environmental Technology, Metallurgy and many more.
|
|
|
|
|
|
The various designs and ultimate pressures of R 5 type pumps allow the pump to be easily and optimally adapted for any process. R 5 type vacuum pumps are designed for continuous operation in industry and have been successfully used for many years in various applications.
Compact design, air cooling and easy access allows rapid and simple servicing with long periods between service. 0.1 mbar to 20 mbar covers every rough vacuum application. No preventative maintenance apart from routine oil and filter change is required.
Features
* Ultimate end pressure of 0.1mbar (previously 0.5 mbar)
* Increased suction capacity at low pressures
* Reduced model variants
* Same price as old model
* Proven reliability, also under continuous operation
* Air-cooled – no water needed
* Excellent water vapour tolerance
* Standard mounted oil mist eliminator
* Easy maintenance
Application
Ideal for use in various industries such as Packaging, Chemical & Pharmaceutical Industry, Plastic, Printing and Paper, Food, Beverage, Wood, Pneumatic Conveying, Brick Making, Drying and Impregnation, Adsorption and Degassing, Handling, Environmental Technology, Metallurgy, Remediation and many more.
|
|
Huckepacks are the proven vacuum pumps for tough applications in the chemical and plastics industry. With their large range of accessories can be easily adapted to different processes and pumped gases.
Due its high water vapour tolerance, the pump is ideal for handling solvents and condensable gases.
Features
* Low ultimate pressure achieved by two stages
* Proven reliability and low maintenance
* Adjustable oil metering pump
* Sound rotary vane technology
* ATEX certified (option)
* Direct or self contained cooling system option available
Application
Ideal for use in Chemical & Pharmaceutical Industry, Plastic, Packaging, Brick Making, Drying & Impregnation, Absorption & Degassing, Metallurgy and many more.
|
|
High Throughput/Portable vacuum for:
- Glove Box
- Desiccator
- Storage Under Vacuum
- Air Sampling
- Material Handling
Features
- Free Air Displacement to 4.6 CFM
- Vacuum to 26 in. Hg, pressure to 10 PSIG
- Oil-free
- Continuous-duty Operation
|
|
|
Their special design with low weight and small dimensions make the UVD units extremely compact and reliable. This is achieved through the direct assembly of rotor on motor shaft and a powerful centrifugal fan for cooling. UVD vacuum pumps are suitable for evacuation of small, closed systems with residual pressure of up to 120 mbar.
|
|
Available in oilless or lubricated, motor-mounted or separate drive, Gast rotary vane compressors and vacuum pumps offer a wide choice of capabilities.
• Oilless or lubricated styles will accommodate a wide variety of pneumatic applications
• Self-lubricating, self-adjusting vanes on oilless models provide like-new efficiency throughout the service life of the pump
• Motor mounted or separate drive versions allow versatility in selecting the right pump for your application
• Miniature through larger size models offer an extensive performance range to satisfy most any need
|
|
From 2 to 100 m3/h (1.4 to 85 cfm) : THE BEST WAY TO MEET YOUR REQUIREMENTS
PASCAL series rotary vane pumps can meet the requirements of your specific application by offering a wide range of dedicated series :
• I series
Analytical instrumentation
• SD series
Standard non-corrosive
• C1 series
High resistance to corrosion
• C2 series
Most corrosive/Semiconductor
• H1 series
Hermetic, high tightness level
|
|
|
This new series has been studied to face different versions requests coming from the European Market and to allow different mounting possibilities. The STAR series is composed of 3 models (STAR 60, STAR 72 and STAR 84) with capacities from 10680 lt/min. to 14420 lt/min. It is supplied as series with the force feed lubrication, side outlets manifold with 1 revolving elbow, rear cast-iron oil tank (/...V version) or side sheet oil tank (/...F version) to allow the application where the space is restricted or to the more convenient place in the installation. The STAR series may be supplied, on request, with different kinds of fittings which may help the installation and/or the use of the pumps same. Every model of this series is available in versions /M with overdrive, /P for pulley application, /D direct drive, /H for hydraulic transmission and /K for hydraulic pump application.
|
|
V-VC
Volume flow: 50 to 1535 m³/h
Vacuum: 0,1 mbar
The oil-lubricated rotary vane vacuum pumps V-VC are based on three different designs:
• Compact pumps with overhung bearing design
• Medium ranges with rotors supported on both sides and flexible coupling
• Large pumps with rotors supported on both sides, flexible coupling and double walled cylinder
V-VC-machines are air cooled in standard version. An oil-water cooler is available for high ambient temperatures or for heat recovery. The exhaust air is cleaned in a built-in mist filter with a very high separation efficiency ensuring oil free operation in all working conditions.
Typical Application:
Central vacuum systems, Environmental engineering, Food processing, Industrial applications, Medical industry, Packaging industry, Pick and Place, Pneumatic conveying, Vacuum drying, Woodworking industry
|
|
|
Kinney Rotary Vane vacuum pumps provide an economical vacuum source for those applications where the process is relatively clean or filtered. Gas ballast valves for vapor handling applications are included as standard equipment.
|
|
Thanks to the high quality of material and components and to the technology of construction, the single stage UVL vacuum pumps achieve one of the best vacuum degrees attained by similar units available on the market.
UVL vacuum pumps are suitable for evacuation of small closed systems or for continuous suction within a pressure rate from 200 to 2 mbar (up to UVL18), from 400 to 0,5 mbar (from UVL25), from 400 to 10 mbar (RA version).
|
|
RV Rotary Vane Pump Range
RV series pumps are unique in their capability to deliver high or low throughputs with high ultimate vacuum, which combined with ultra-low noise levels makes them ideal for a wide range of applications and environments.
* 48 dBA and intrusive frequencies minimised.
* Dual mode.
* Easy-to-use gas ballast.
* Fast acting inlet valve for system protection.
* High torque, dual voltage/dual frequency motor, electronic start relay.
* Efficient high pressure lubrication.
* Oil-tight with printed gaskets, effective shaft seals.
* Clamped-in sight glass.
* Oil box well contains filling spills.
* Hi-tech polymer blades, large diameter, easy-clean oil passages.
* Consistent, built-in quality, cast bar construction.
|
|
|

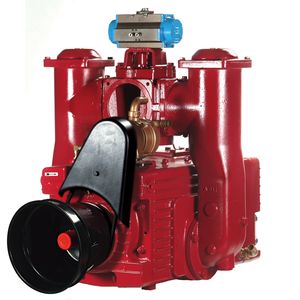

The KTM series has been recently planned and manufactured with vanguard technical solutions and with materials of high technology. This series is composed of 4 models (KTM 1200, KTM 1500, KTM 1800 and KTM 2300) with capacities from 21500 lt/min. to 36300 lt/min. and it is available in versions HFR and PFR. The Exhausters/Compressors are equipped, as series, with an automatic lubrication system and, on request, with a water-cooling system on the body and flanges too. The building characteristics of Exhausters/Compressors of KTM series allow a continuous use. There are also available many fittings to complete the application.
|
|
|
|
|
|
General description
HINDHIVAC "FD" Series Rotary Pumps are designed to address the needs of all the major requirements like research as well as industrial applications.
Raw Materials are chosen keeping in view of continuous pumping requirements. Pressure tight, special grade, fine grain castings & high carbon steel for internal parts are hardened and ground to close tolerances. These ensure noise and vibration at negligible minimum levels. Compactness and minimum oil charge are the highlights of the design feature.
These Rotary Pumps have a gas ballast facility to pump most condensable vapors without any notable oil contamination. An anti-suck-back facility prevents oil entering the system in the event of pump being switched off due to power failure. An integral Oil pump ensures lubrication and sealing to build high vacuum.
These Rotary Pumps find application in the area like Impregnation, Nuclear particle study, Electronic Tube evacuation, Lamp manufacturing Industries, Air conditioning and Refrigeration, Freeze Drying, Gas circulation, vacuum forming, Filtration, Metalizing, Distillation, Vacuum Metallurgy, etc.
|
|
Pfeiffer Vacuum is committed to innovation. It was in this spirit that we developed the new PentaLine™ rotary vane pumps for your applications
in the low- and medium-vacuum range of down to 10-3 mbar.
The optimized drive system that is used in these pumps affords you
cost-effectiveness that is convincing and environmentally friendly. The approximate 50 %
Space-saving and hermetically sealed – the innovative PentaLine™ is super clean and requires only little maintenance. Both man and machine benefit equally from these New Generation rotary vane pumps. As a
further innovation, they incorporate a motor concept that makes them easy to deploy anywhere in the world. The PentaLine™ pumps run extremely quiet and with a minimum of vibration.
|
|
