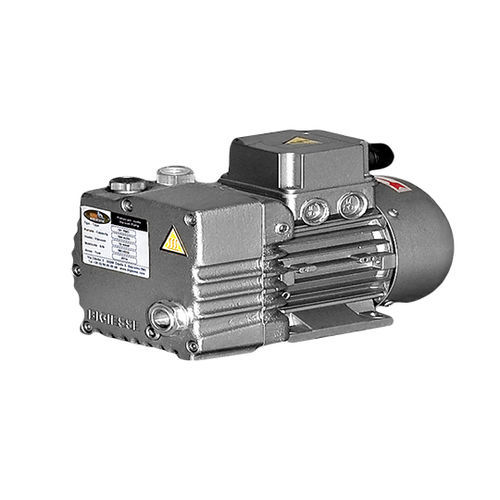

Rotary vane vacuum pump 3 PBOoil-injected24VDC12VDC
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-injected
- Supply voltage
- 24VDC, 12VDC
- Number of stages
- single-stage
- Applications
- for medical applications, for laboratory, for the chemical industry, for pharmaceutical applications, OEM
- Other characteristics
- compact, small, air-cooled, with electric actuator, ATEX, electrically-powered, monobloc
- Ultimate vacuum
2 mbar, 10 mbar
(0.03 psi, 0.15 psi)- Flow rate
3 m³/h, 3.6 m³/h
(105.94 ft³/h, 127.13 ft³/h)- Power
0.11 kW
(0.15 hp)- Noise level
57 dB
- Weight
7 kg
(15.43 lb)
Description
Cast iron compressor pump coupled directly to the electric motor. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. First oil filling included.
Accessories:
Air filter, gas ballast valve, vacuum gauge, BGS TORR F32® non-toxic synthetic fluid
Certifications on request:
ATEX
Catalogs
3 PBO - 3 PBOM
2 Pages
