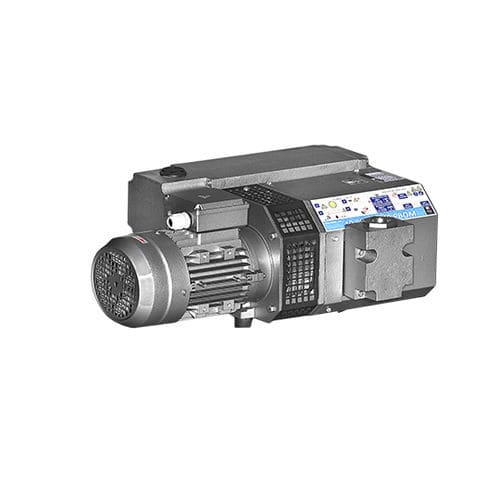

Rotary vane vacuum pump 41 PBO
lubricatedsingle-stageflexible

rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Applications
suction, flexible
Other characteristics
ATEX, cast iron
Ultimate vacuum

0.5 mbar, 10 mbar
(0.01 psi, 0.15 psi)

Flow rate

40 m³/h, 48 m³/h
(1,412.59 ft³/h, 1,695.1 ft³/h)

Power

1.1 kW, 1.5 kW
(1.5 hp, 2.04 hp)

Noise level

67 dB

Weight

42 kg
(92.59 lb)

Description

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid Special voltages: available. Certifications on request: ATEX
