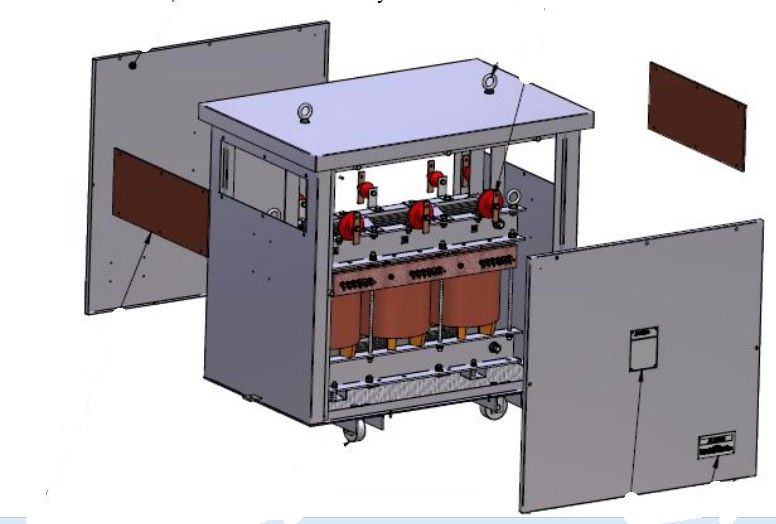

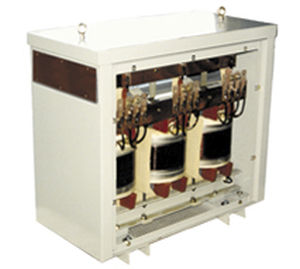

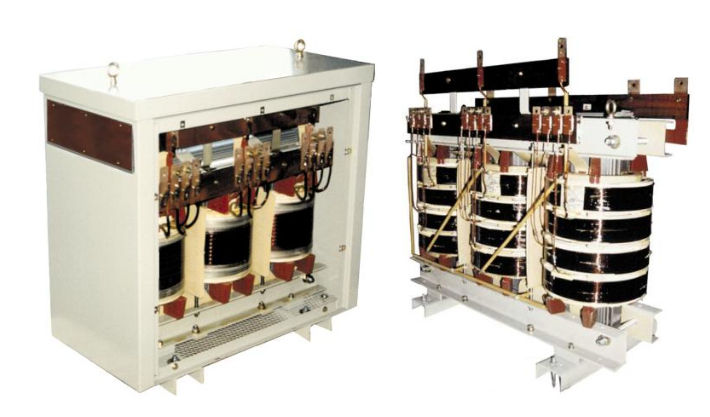

Dry type distribution transformer
16 - 630 kVA
Augier
Description

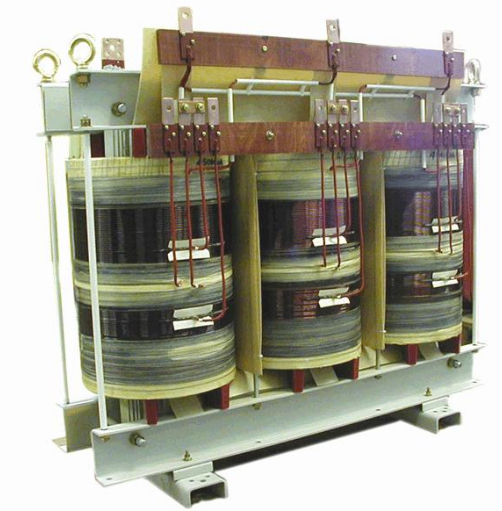

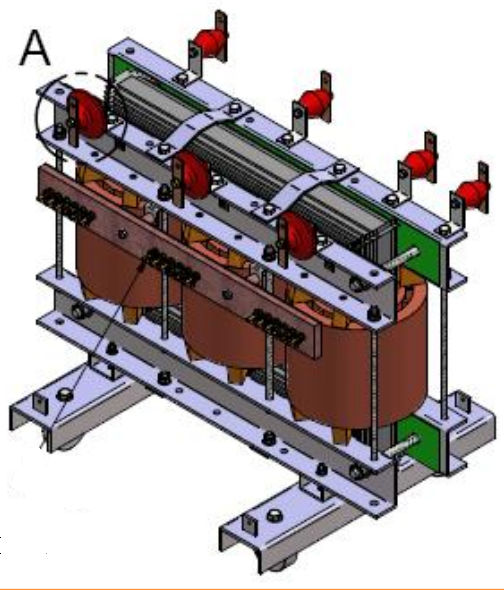

Oriented crystal plate magnetic circuits, low loss. Copper or aluminium windings, varnish impregnated.
Features :
* Protection : Optional IP31

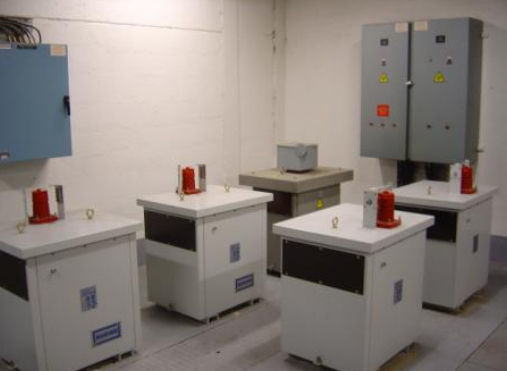

* Temperature : For use in dry, ventilated rooms, room temperature = 40°C
* Power : 25-50-100-160-250-400-630kVA
* Primary voltage : 3200-5500-6600 V
* Primary insulation voltage : 7,2 kV
* Secondary voltage : 237 V - 410 V
* Secondary insulation voltage : 1,1 kV
* Coupling : All possible types
o Three-phase / Three-phase
o Three-phase / Two-phase
o Three-phase / Single-phase
o Single-phase / Single-phase
* Compliance standards : UTE C 52100 - IEC 76
