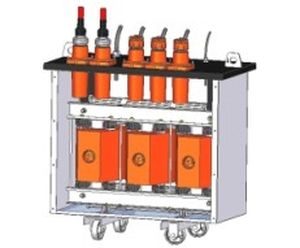

Specially designed for expressway and railway, this outdoor transformer is a three-phases transformer for three-phasses network, casted in resin and specially treated against corrosion.
Specifications :
* IP : IP25
* Power rating : 50 - 125 - 160 kVA
* Maximum current : 80 A
* Primary voltage : 5500 V
* Primary winding insulation level : 7,2 kV
* Secondary no-load voltage : 410 V
* Secondary winding insulation level : 1,1 kV
* Standards : NFC 52 410
