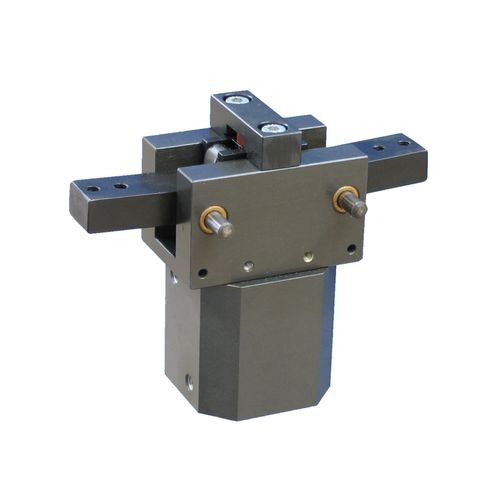

180° angular gripper Type 22

pneumatic2-jawhandling

Pneumatic gripper with 2 concentric fingers Finger self-locking closed gripper (toggle joint action) Elastic absorption at opening Options : Inductive sensors Opening screw limitation Fingers with smooth holes Interest of 180 ° angle grippers Grippers with 180° opening angle are generally used to suppress a clearance movement because the open fingers allow the product to pass laterally, for example during a linear transfer or for maintaining a product on a turntable. Self-locking on closing by toggle effect These grippers use toggle technology that allows self-locking of the jaws in the last degree of closure and a large clamping force. They therefore remain locked even in the absence of air pressure. They can only be used for a grip from outside the piece and for parts with an identical grip dimension. The detection cam mounted on the axis of rotation allows the 2 inductive sensors to detect any desired position. The option “opening screw limitation” allows to adjust the opening stroke if the 180 ° are not sought (the interest to stay on this gripper is to keep the self-locking when closing and the significant tightening force). Without limiting screws, the grippers have an elastic damping at opening.
