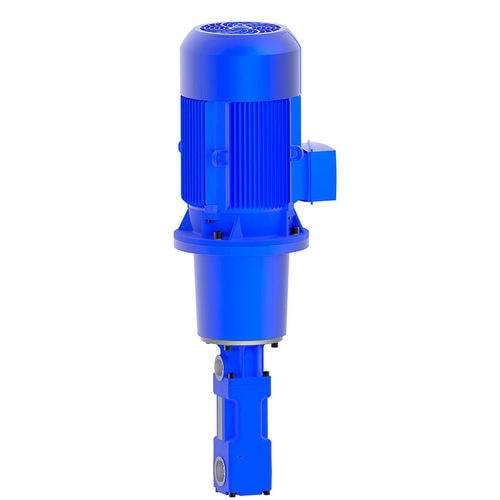

Coolant pump TFS4 series
for lubricantselectricsemi-submersible

coolant pump
coolant pump
Add to favorites
Compare this product


Characteristics

Fluid
for coolant, for lubricants
Operation
electric
Priming
semi-submersible
Technology
3-screw
Domain
industrial, for the metallurgical industry, for machine tools
Applications
high-pressure, discharge, for emulsions
Material
steel
Fluid specification
cutting fluid
Other characteristics
compact, suction, high-efficiency, high-performance, high-flow, vertical-mount
Flow

Max.: 235 l/min
(62.08043 us gal/min)

Min.: 117 l/min
(30.90813 us gal/min)

Pressure

Max.: 120 bar
(1,740.453 psi)

Min.: 10 bar
(145.038 psi)

Power

Max.: 62 kW
(84.3 hp)

Min.: 2.2 kW
(2.99 hp)

Description

Screw spindle pumps with their silicon carbide spindle housing and highly wear resistant spindles are capable of achieving extremely high pressures. Brinkmann high pressure screw pumps are designed for pumping filtered and lubricating fluids such as coolant oils andwatersoluble coolants. High pressure screw pumps are NOT designed for dry-running. Applications Kinematic viscosity - - higher viscosity upon request - Pumping temperature - - higher temperatures upon request - Max. air content - - 3 - 5 vol. % - Recommended filtration levels - - General Machining (Turning, milling, drilling) < 50 µm Grinding and machining of aluminum < 20 µm For additional information please refer to mechanical features within the technical information section. Construction Pressure and Suction Housing - - Cast iron Spindle Housing - - Silicon Carbide, one-piece, highly wear resistant and precision Screw spindles - - Hardened tool steel specially treated, alloy; highly wear resistant and precision ground Gasket - - Viton
