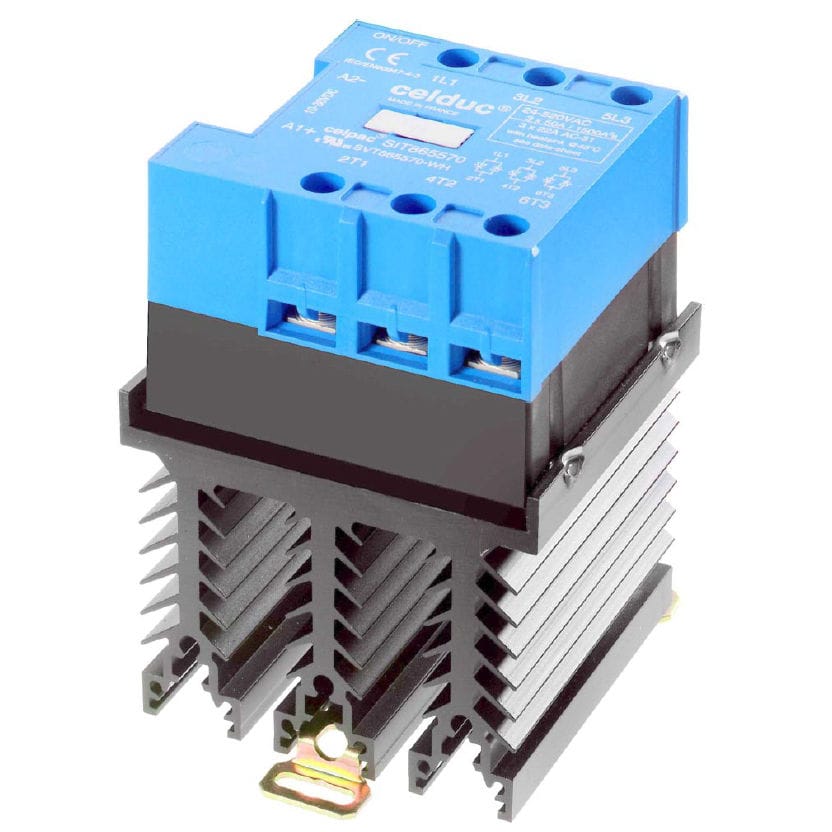

Three-phase solid state contactor
24 - 520 VAC, max. 5 - 50 A | SIT series
celduc relais
Ready to use Three phase ZeroCross Solid State Contactor designed for
all types of loads.
New High Efficiency Back to back thyristors on output with TMS2
technology(*) for a long lifetime expectancy: 24 to 520VAC 50A
I2t > 1500A2s (**)
Control range: 8,5-30VDC or 10-30VAC.
Green LED visualization on the input.
High Immunity and output voltage protection by RC and VDR
Delivered with integrated heatsink for DIN rail mounting and with IP20
protection cover.
Designed in conformity with EN60947-4-3 (IEC947-4-3)
and EN60950/VDE0805 (Reinforced Insulation) -UL-cUL
