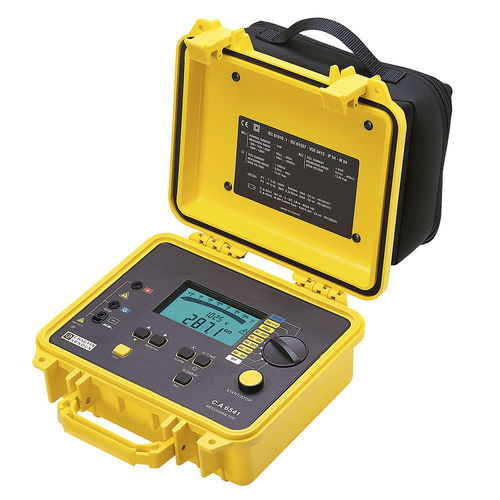

Insulation tester C.A 6541

continuityresistancecapacitance

The C.A 6541 is a high-performance 50V to 1kV insulation tester; it supports the most demanding site conditions and is ideal for qualitative insulation analysis. • insulation: up to 4 TΩ (5 cal.) at 50/100/250/500 and 1,000 V DC • automatic calculation of insulation quality ratios: DAR and PI • programmable test duration and plotting of the R(t) curve (automatic storage of 20 samples) • automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC • resistance: 0.01 Ω to 400 kΩ • continuity: 0.01Ω to +40 Ω (audible beep and lead compensation) • automatic measurement capacity after each insulation measurement: 0.005 to 4.999 µF • microprocessor-controlled • large LCD screen with digital display + bargraph • backlighting • SMOOTH function • insulation test voltages can be locked • programmable alarms • long battery life: 8 x LR14 batteries (21,000 insulation tests of 5s each) • remote control probe available as an option • electrical safety: IEC 61010 600V CAT III and IEC 61557 • dimensions: 240 x 185 x 110mm; weight: 3.4 kg
