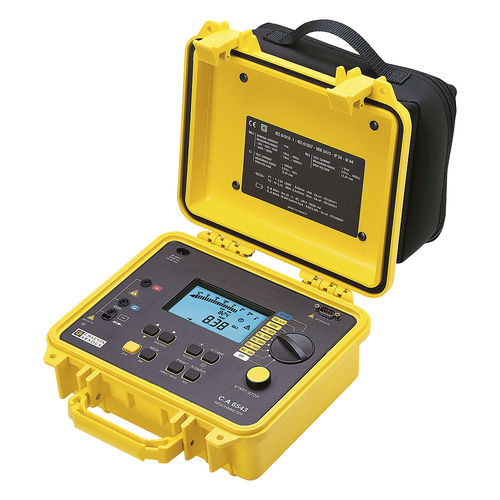

Insulation tester CA 6543

continuityresistancecapacitance

The C.A 6543 is a 50V to 1kV high-performance insulation tester. It supports extreme site conditions and is an expert tool for qualitative insulation analysis: • insulation: up to 4 TΩ (5 ranges) at 50/100/250/500 and 1,000 V DC • automatic calculation of insulation quality ratios: DAR and PI • programmable test duration and plotting of the R(t) curve • automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC • resistance: 0.01Ω to 400 kΩ • continuity: 0.01 Ω to +40 Ω (audible beep and cable compensation) • automatic capacitance measurement after each insulation measurement: 0.005 to 4.999 µF • microprocessor-controlled • storage of measurements (128 kB) • bi-driectional RS232 • large LCD screen with digital display and bargraph • backlighting • SMOOTH function • possibility of locking insulation test voltages • programmable alarms • long battery life thanks to rechargeable battery with internal charger • remote control probe available as an option • electrical safety: IEC 61010 600V CAT III and IEC 61557 • dimensions: 240 x 185 x 110mm; weight: 3.4kg • large number of optional accessories: remote control probe, MegohmView PC data processing software, printer
