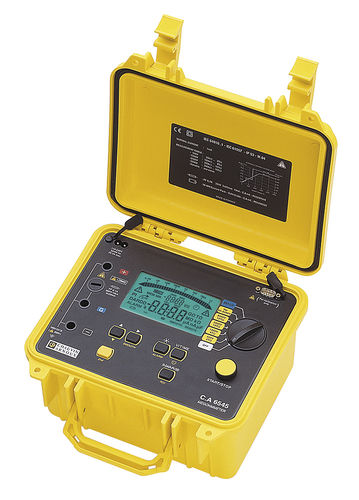

Insulation tester CA 6545

voltagecapacitanceleakage current

In its site-proof case, the C.A 6545 megohmmeter can be used for quantitative and qualitative analysis of insulation. It also automatically measures voltage, capacitance and residual current. Functions and specifications: •measurement range: 10 kΩ to 10 TΩ •4 fixed test voltages: 500 / 1,000 / 2,500 and 5,000 V •adjustable test voltage position: 40 to 5,100 V in 10 V or 100 V increments •large backlit LCD screen with digital display and bargraph •quantitative insulation analysis: DAR, PI and DD (dielectric discharge) quality ratios calculated automatically and R(t) stored •large number of functions: programmable test duration, test voltage locking, smooth function, programmable alarms, etc. •power supply: NiMH rechargeable battery for 30 days' operation with 10 DAR measurements and 5 PI measurements per day •electrical safety: IEC 61010-1 Cat.III 1000V or Cat.I 2500V and IEC 61557 •dimensions: 270 x 250 x 180 mm; weight: 4.3 kg
