Insulation tester C.A 6503portableanalog
Add to favorites
Compare this product
Characteristics
- Test type
- insulation
- Configuration
- portable
- Other characteristics
- analog
Description

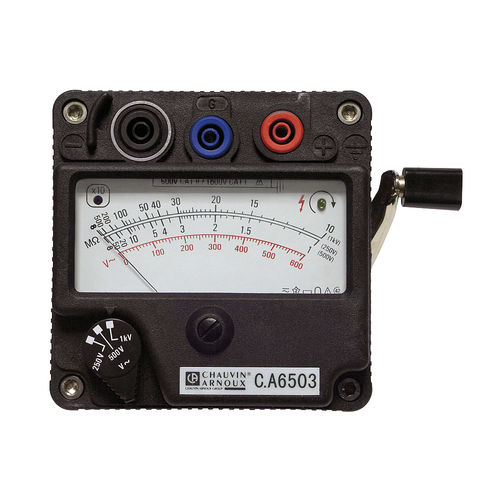

Portable, lightweight and compact, the C.A 6503 insulation tester can be used totally independently because it is powered by a magneto.
This all-terrain tool is ideal for use on industrial and residential sites, electricity distribution networks and telecommunications equipment. It is suitable for a wide range of applications such as ensuring that electrical installations comply with the applicable standards, or carrying out preventive maintenance on cables, motors, circuit-breakers, transformers, etc.
Specifications:
•Test voltages: 250, 500 and 1,000 V DC
•Measurement range: 1 to 5,000 MΩ
•Power supply: magneto
•Protection: IP52
•Electrical safety: IEC 61010 300V CAT III
•Dimensions : 120 x 120 x 130 mm / 1.06 kg
