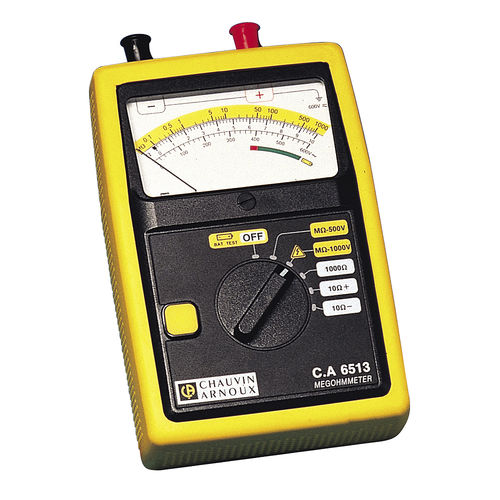

Voltage tester C.A 6513

insulationcontinuityresistance

The C.A 6513 is an economical insulation and continuity tester popular with self-employed electricians, installers and maintenance departments for measurements on electrical devices and installations Functions and specifications: •Insulation measurement: up to 1,000 MΩ (1 range) at 500 V and 1,000 V DC •AC voltage measurement: 0 to 600 V •Continuity measurement: -10 Ω to +10 Ω (I = 200 mA) •Resistance measurements: 0 to 1,000 Ω •Automatic voltage absence testing by direct measurement •Single input on two colour coded terminals •Easy reading of the indication and logarithmic scale •Power supply: 4 x LR6 1.5 V batteries •Compliant with IEC 61557 •Electrical safety: IEC 61010 600V Cat III •Dimensions: 167 x 106 x 55mm; weight: 600g
