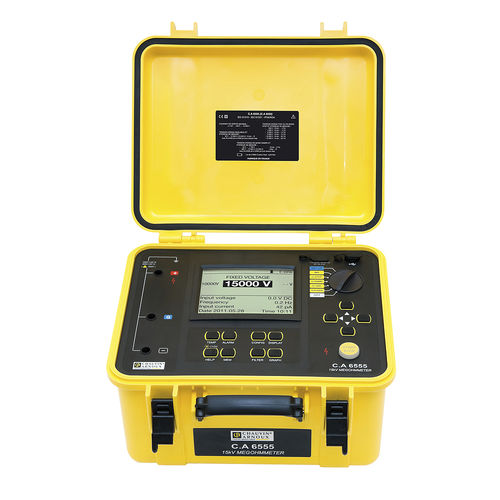

Insulation tester C.A 6555
voltageresistanceindustrial

insulation tester
insulation tester
insulation tester
insulation tester
insulation tester
Add to favorites
Compare this product


Characteristics

Test type
voltage, insulation, resistance
Applications
industrial, R&D
Configuration
portable
Other characteristics
digital, USB

Description

With its site-proof casing, the C.A 6555 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations. They are ideal for electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure. Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43 standard which recommends testing insulation at 5-10 kV. Functions and specifications: •Wide measurement range from 10 kΩ to 25 TΩ •Fixed or programmable test voltage from 40V to 15 kV •5mA max. charging current •Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs •Automatic ratio calculation: DAR / PI / DD / DR (ppm/V) •Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes •3 filters to optimize measurement stability •Calculation of R at a reference temperature •80,000-measurement storage capacity and real-time clock •Optically-isolated USB communication for transfer onto PC and report generation with DataView® software •Power supply NiMH rechargeable battery with external charger •Compliant with IEC 61557 -1 -2 •Electrical safety: IEC 61010 1000V CAT IV •Dimensions: 406 x 330 x 174 mm / 6 kg
