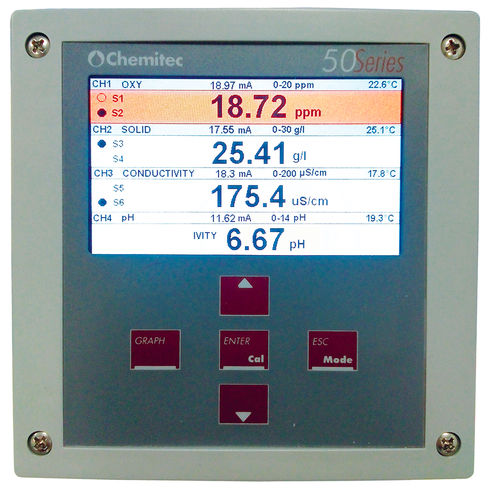

Water analyzer 50 series

temperaturepHORP

Complete and flexible system for a wide range of applications in water treatment with easy to use software and automatic recognition of sensors: available in two configurations, with up to two (2) and up to four (4) simultaneous measurements, freely selectable. Equipped with two RS485 serial ports: one (1) for sensors with RS485 digital interface and MODBUS RTU protocol and one (1) opto-isolated for the connection with the communication devices (Setup Computer, Remote Control Terminals etc.) of the local networks. Incorporates a Real Time Clock (clock with date) which allows the software to archive the data chronologically to the flash memories also used for storing LOG files of the events. Programming keypad with 5 bubble-keys with CAL Key for direct access to the Calibration menu GRAPH/USB Key for direct access to the Measure graphs and for data download to USB PENDRIVE MODE Key for self-recognition of sensors Graphic TFT color LCD resolution 480x272 visible area 95x93 which allows the simultaneous display of digital measurements Internal Data Logger (flash 64 Mbit) with possibility to store up to 250.000 records and to display stored data in tabular and graphic form. Data download to USB PENDRIVE or through RS485 and C_NET dedicated SW. Programmable Analog Outputs for repeating the measurements, PID control and temperature; with the first and the second set on the measurement of the same parameter, the third can be set as the average of the other two.a Digital Output Relays to adjust the Set Points for the measures, the alarm for instrument anomaly,
