ORP electrochemical electrode S403PSceramic
Add to favorites
Compare this product
Characteristics
- Type
- ORP
- Material
- ceramic
Description

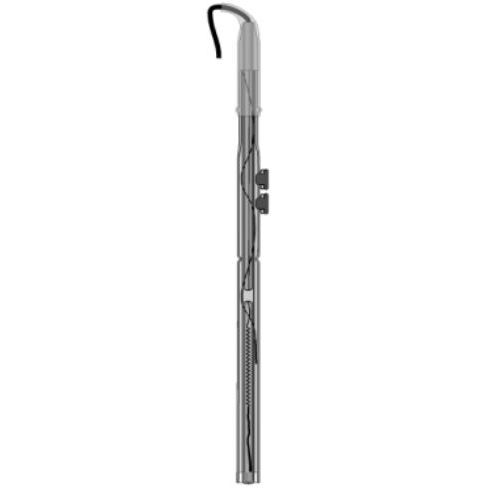

S403/PS Pt Platinum Redox Electrode for high concentration
Suspended solid application
Glass, combined Redox Electrode (Ø=12mm. L=230mm).
Saline bridge reference.
Anular ceramic diaphragm.
KCl or KNO3 filling orifice,
Measuring range – 2000 ÷ +2000mV
Max working temperature 80°C
Max working pressure 0.2 bar
Min. conductivity 2 µS
5 mt. fixed cable ( other lengths on request )
