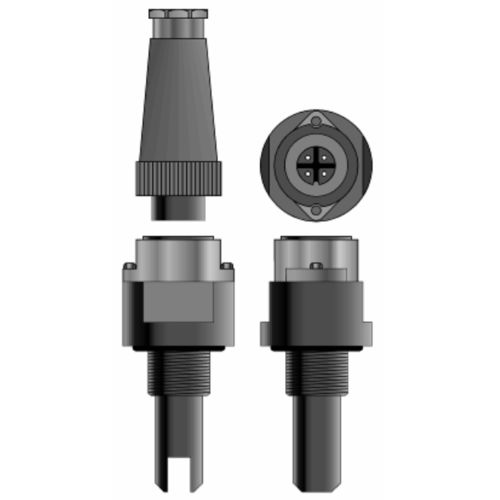

thermal conductivity sensor / for water
S411U series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
thermal conductivity sensor / for water thermal conductivity sensor / for water - S411U series
{{requestButtons}}

Characteristics

  • Type:

    thermal

  • Product:

    for water

Description

Materials :
¾ PSU Body
¾ Graphite Electrodes
¾ O-Ring BNC
¾ Temperature sensor embedded in an INOX
case, in direct contact with the liquid
¾ Waterproof connector
Thread: 1/2” GAS or 1” GAS
Cell’s constants: K = 0.1 cm, K = 1 cm, K = 10 cm
Cable length: 5m (10m or 15m available on request)
Max working temperature: 120°C
Operating pressure: 6 Bar at 20°C / 2 Bar at 120°C
Measuring range: (K = 10 cm) 0÷200 μS - (K = 1 cm)
0÷50000 μS - (K = 0.1 cm) 10÷200 mS
