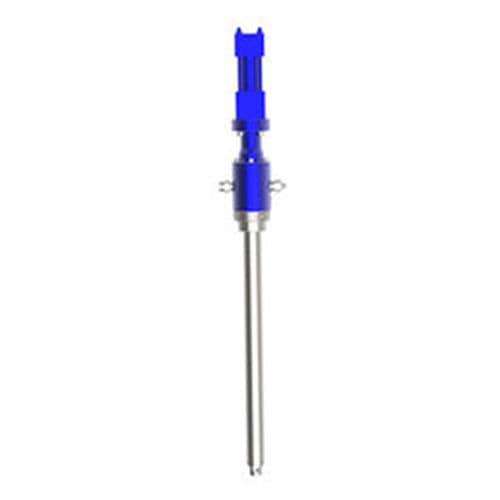

Hydraulic piston pump 0234560

carbon steelgreasefor lubrication

A hydraulically driven piston pump powered by an external oil pump and a change-over valve. Canon-Hydraulic is suited to automatic lubrication system for mobile and fixed systems where no electrical power is present. Typical such applications require that grease is pumped at pressure (for example bearings, hubs, studs, joints, etc..) in quarries, mines, industrial and manufacturing applications. Manufactured in high quality carbon steel, the pump design features allow it to work with viscous lubricants without any additional complicated priming procedures. The pump, when combined with a suitable grease follower plate will be able to operate and pump the grease inside the drum without creating air pockets or other such problems associated with these kind of systems. Key features: - Pump system: Hydraulic activated Piston mechanism - Lubricant Outlet Port: G3/8” – UNI ISO 228/1 - Return Line Port: G1/4” – UNI ISO 228/1 - Hydraulic Feed/Return Port Connection (A – B): G3/8” – UNI ISO 228/1 - by-pass Pressure: Adjustable 80 bar ÷ 450 bar - Usable Grease Index Range: NLGI 000 ÷ 2 - Nominal Output per Pump Stroke: 5cc/ stroke - Minimum Hydraulic input pressure: 30 bar - Oil flow requirement per stroke : 83,5cc - Maximum operating frequency: 100 stroke per minute - Hydraulic circuit olio viscosity range : 10cSt ÷ 400cSt - Storage temperature: -30°C ÷ +90°C
