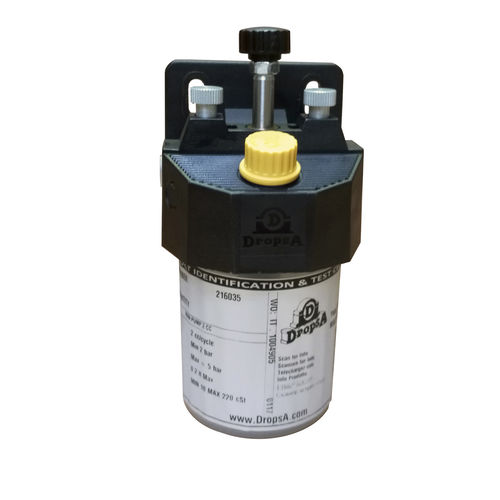

Piston pump 2160 seriesoilmanualnormal priming
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- oil
- Operation
- manual
- Priming
- normal priming
- Mobility
- stationary
- Applications
- for lubrication, for centralized lubrication systems
- Pressure
5 bar
(72.519 psi)
Description
Positioned in the center of the installation compared to the two lines it allows to improve the length of the facility.
It can be used with a single exit, another exit is closed by a special flip.
Key features:
- Output : 2 cm³ per full operation
- Reservoir: semi transparent 200 cm³
- Suction Filter: 40 micron
- Output Port: 1/8" BSP
- Compatible Fluids: Vegetable Oil, Mineral oil, Silicon oils, ink.
- Viscosity: min 100 cSt - max 250 cSt
