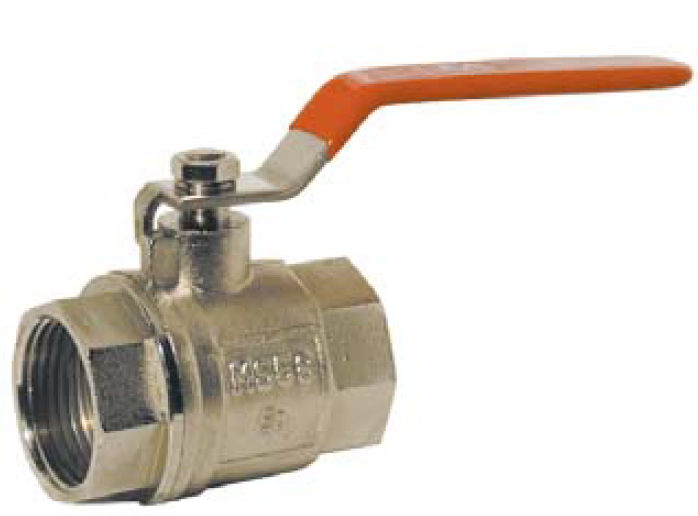

2-way brass ball valve
1/4" - 2 1/2", PN 16 | CB series
END-Armaturen GmbH & Co. KG
DESIGN
Body consists of two screwed parts,
full cylindric bore.
OPERATION
Rotation of the handle through 90°.
CONNECTION
Female B.S.P thread: Yén.2W, ISO 228
Female-/ Male B.S.P thread: Vi"...2", ISO 228
PRESSURE RANGE
V*"...T : PN 30 (up to 80°C)
21/2" :PN 16(upto80°C)
For higher temperatures please refer to the
Pressure-Temperature-Diagram.
TEMPERATURE RANGE
-20°C ... +100°C
