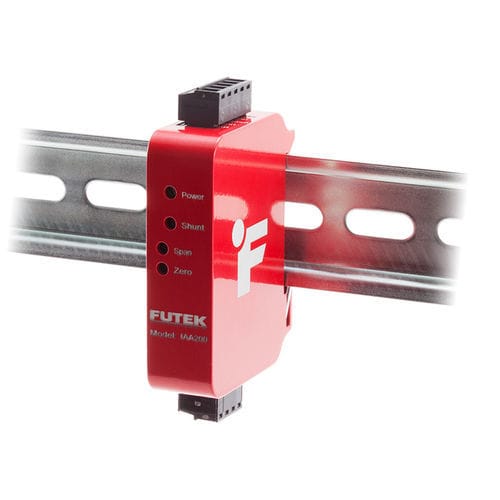

Signal amplifier IAA200 series

differentialconditioninganalog

FUTEK's IAA200 Analog Amplifier with Current Output is FUTEK’s brand new general purpose amplifier solution for in-line amplification of any full bridge strain gauge type sensor with mV/V range output. The new model combines precision and ease of integration with a 0.005% total error. The IAA200 features an aluminum housing with an integrated DIN clip designed for industrial environment applications. Model Features •Uni-directional/Bi-directional Output, Differential Input •4-20 mA Output •Bridge Excitation: 5 or 10 VDC (DIP Switch) •Ranges: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 10.0 mV/V (DIP Switch) •256 Selectable Shunt Combinations: 30kΩ, 43.7kΩ, 60.4kΩ, 87.6kΩ, 100kΩ, 150kΩ, 300kΩ, 432kΩ (DIP Switch) •Externally Accessible Shunt Cal Activation Button •Digitallly Controlled Remote Shunt •Internal Span and Offset Potentiometers •Sensor Polarity Reversal DIP Switch •Zero Shift DIP Switch •Class 1 Certification for Aerospace and Medical Grade Devices
