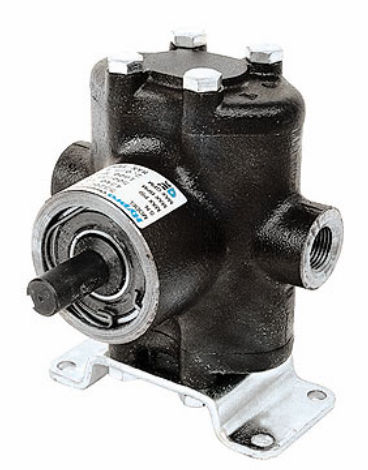

Mini piston pump
1.5 - 3.0 gpm, max. 500 psi | 5300 series
Hypro Pressure Cleaning
These small twin piston pumps achieve up to 3 gpm (11.5 lpm) and 500 psi (34.5 bar)
Performance Information
• Max. flow: 1.5 - 3.0 gpm/5.7 - 49.2 lpm
• Max. pressure: 500 psi/34.5 bar
• Max. rated speed: 1800 rpm
• Max. fluid temperature: 140°F/60°C
Other Attributes
• Port sizes: 1⁄2" NPT inlet, 1⁄2" NPT outlet
• Shaft size: 5⁄8" O.D. solid shaft or 5⁄8" I.D. hollow shaft
• Pump shaft rotation: bi-rotational
• Cups: Leather (Buna-N and Teflon available)
• Injector head available
• Models require a pulsation dampener (such as a 3375-0012 pulse hose) on the discharge side
• Weight: 10 lbs./4.5 kg
Performance Information
• Max. flow: 1.5 - 3.0 gpm/5.7 - 49.2 lpm
• Max. pressure: 500 psi/34.5 bar
• Max. rated speed: 1800 rpm
• Max. fluid temperature: 140°F/60°C
Other Attributes
• Port sizes: 1⁄2" NPT inlet, 1⁄2" NPT outlet
• Shaft size: 5⁄8" O.D. solid shaft or 5⁄8" I.D. hollow shaft
• Pump shaft rotation: bi-rotational
• Cups: Leather (Buna-N and Teflon available)
• Injector head available
• Models require a pulsation dampener (such as a 3375-0012 pulse hose) on the discharge side
• Weight: 10 lbs./4.5 kg
