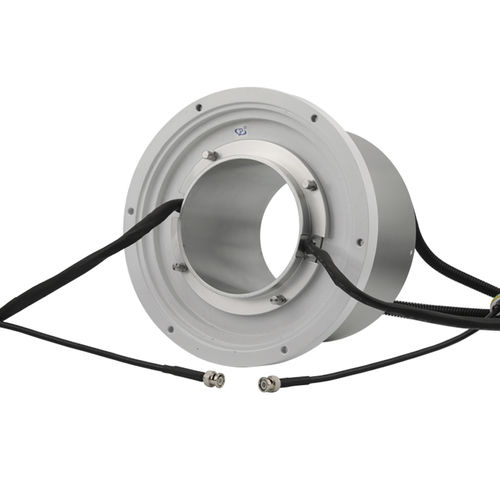

through-hole slip ring / aluminum / with gold contacts
LPTS125-0420-07S JINPAT Electronics Co., Ltd.

{{requestButtons}}

Characteristics

  • Construction:

    through-hole

  • Material:

    aluminum

  • Other characteristics:

    with gold contacts

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 100 rpm (628 rad.min-1)

  • Current:

    Min.: 2 A

    Max.: 20 A

  • Voltage:

    220 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 7 unit

Description

Part Number: LPTS125-0420-07S

11circuits

Current range:4circuits@20A, 6circuits*signal, 1circuit*analog video signal;
Voltage of 220VAC; Compression Strength ≥500VAC@50Hz between circuits;
Insulation of 1000MΩ@500VDC; Wire Size: FLRY-B 2.5mm³, FLY-B 1.0mm³ Coaxial Wire 75Ω RG59

Operating Speed:0~100rpm; Wire Length: stator (4m), rotor(4m); Inner diameter of φ125mm

Working Temperature: -20°C~+80°C; Up to 60%RH; IP54(rotor upwards)
