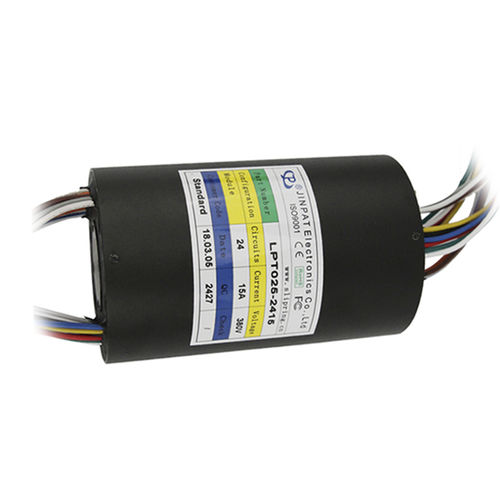

Electro-optical electrical slip ring LPT025-2415

hollow-shaftlow-torquefiber brush

The LPT025 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 25.4mm through-bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular LPT025 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation. Specification Circuits - 24 circuits Operating Speed - 0-300rpm Working Temperature - -20℃~ +60℃ Working Humidity - 60%RH or higher Voltage Rating - 240VAC/DC Current Rating - 15A per circuit Dielectric Strength - ≥1000V@50Hz between each circuit Insulation Resistance - 500MΩ@ 500VDC Electrical Noise - 1mΩ Min Contact Material - Precious metal Protection - IP54 or higher Via diameter - 25.4mm
