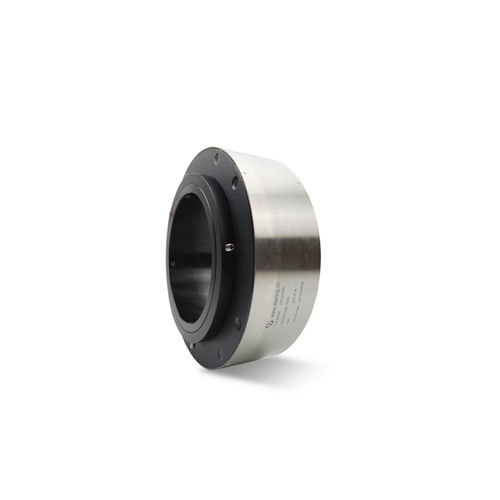

Electric slip ring LPT150-0205hollow-shaftfor wind turbinefor cranes
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- hollow-shaft
- Applications
- for wind turbine, for cranes, for wrapping machines
- Other characteristics
- large-diameter, low-maintenance
- Voltage
Max.: 380 V
Min.: 0 V
- Primary current
Max.: 5 A
Min.: 0 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
Max.: 24 unit
Min.: 1 unit
Description
Part Number: LPT150-0205
2circuits
Current range:2circuits*5A;
Voltage of 380VAC; Compression Strength ≥1000V@50Hz between circuits;
Insulation of 1000MΩ@500VDC; Wire Size: AWG17# tin plated Teflon® UL
Operating Speed:0~300rpm;
Wire Length: stator (300mm), rotor(300mm); Inner diameter of φ150mm
Working Temperature: -40°C~+80°C; Up to 60%RH; IP54
